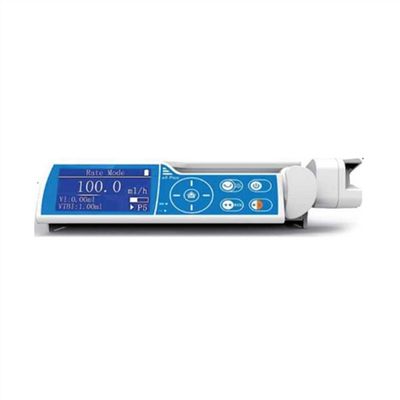

Shimai - SMA Medical Portable Electric Automatic Flow Sensor Infusion Pump
Material: Anti-corrosion PBT material; Screen:3.5`` TFT color screen (sesolution 128*64),support touch screen input; Water-proof: IPX3; Display content: Working status, VTBI, VI (Volume Infused), Time remaining, Pressure threshold, Alarm content, Power status; Dynamic Pressure Surveillance (DPS):5 levels adjustable; Event log: no less than 1000 records, including operating records, alarm records, infusion records. Drug Library(for i5plus):display the drug name.
infusion Mode: i5 rate mode, time mode
i5 Plus rate mode, time mode, Dose mode,Drug library
(Drug name only)
Flow rate: 0.10-1500ml/h, increment 0.01ml
lnfusion rate Increment: 0.1-99.99ml/h, 0.01ml/h Step100.0-999.9ml/h, 0.1ml/h Step
1000-1500ml/h, 1ml/h StepAccuracy: ±5%
Occlusion pressure: unit : mmHg / KPaselec table,
Compatibla lV sets: a1n1y I esvtaenl odcacrdlu IsVio sne pt r(eospseunres,y 0st~e1m01)2mmHG selectable
Pre-configured 4 brands,support user extending brand & calibration
Preset volume: 0.10-9999.99ml (increment 0.01ml)
Preset time: 00:01-99:59 (hh:mm)adjustable
Accumulated volume: 0.01-9999.99ml (increment 0.01ml)
KVO(keep vein open): 0.1-5.0ml/h adjustable, increment 0.1ml/h.(Wheninfusion is completed, it enter automatically KvO mode, KVO can be turned off.)
Purge: 0.10-1500ml/h
Bolus type: Manual mode
Bolus rate:0.10-1500ml/h
Auto Bolus VTBl: 0.1-5.0ml/h adjustable, increment 0.1ml/h
Occlusion reaction: occlusion level 1 @25ml/h : reaction time 5s,occlusion level 5 @25ml/h : reaction time s 7min
Air detection:Air Bubble class has 3 levels:30ul,100ul,300ul;
Air Bubble Class(15 min) has 2 levels:300ul,500ul
Alarm type:Visual and acoustic alarms,three level High-Middle-Low
Alarm content:AC power interruption,Low battery,Depleted battery,Forget reminder,Infusion near end,Infusion complete,Flow rate excess,System exception,Occlusion,Syringe fall off
Alarm volume:1-5 levels adjustable
Air Bubble detection:single air bubble alarm for 25ul,100ul,250ul.
Accumulated air bubble alarm adjustable for 300ul/15min,500ul/15min
