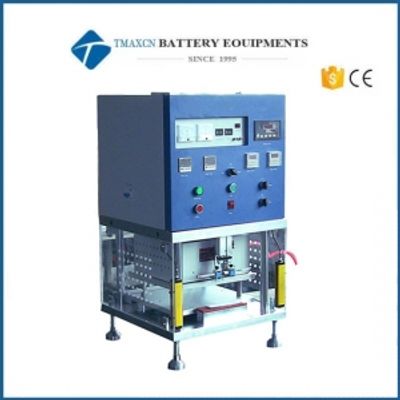

Tmax - Model TMAX-RYJ-S - Short Circuit Test System for Pouch Cell Under Variable Pressure 0 - 1ton
Short Circuit Test System allows for testing pouch cell or its battery pack with adjustable temperature and pressure. Such a system has two test methods which are auto-mode and manual-mode. What`s more, this machine tests insulation resistance precisely to recognize the micro circuit status of the battery in order to test the safety issue of the battery.
Model Number:TMAX-RYJ-S
Compliance:CE Certificate
Warranty:Two Year Limited Warranty With Lifetime Support
Payment:T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:3 Days
Features: Adjustable temperature control; Adjustable pressure control
Working Voltage: AC220V±10% 50/60Hz
Working Pressure: 0~900Kg ±3Kg
Working Distance: 0-80mm
Working Temperature: Upper and Lower Platen:130ºC±5ºC Max.
Hot pressing area: 200 x 200 mm/300 x 300mm/400 x 400mm optional
Short Circuit: Auto alarm
Testing Input Voltage: DC 0~500V adjustable
Max. Measurable Leakage Current: 50 uA
Resistivity Measurement Range: Max. 199MΩ
Testing Period: 0~99 Seconds adjustable (2~3 seconds is suggested)
Air Pressure: 0.1Mpa~0.7Mpa is suggested.
Yields: <600pcs/hour
Warranty: One year limited manufacturer`s warranty with lifetime support; extended warranty available upon request at additional cost.
Dimensions: 500L×500W×1025H mm
Weight: 220KG
