Imperix - SIC Power Module

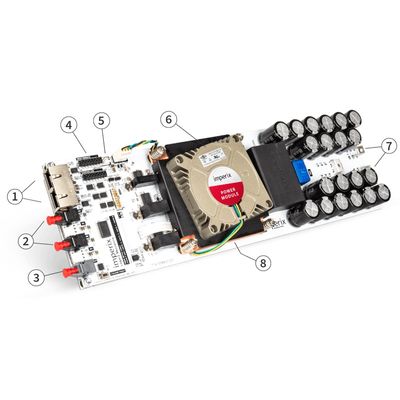

- V/I Sensors outputs (analog)
- Gate drivers inputs (optical)
- Fault output
- Board-to-board link
- Power supply (5/12 V)
- Cooling fan (120 W)
- DC link terminals
- Power switches (2x SiC MOSFETs)
The PEB8024 SiC-based phase-leg modules are truly ready-to-use power electronic building blocks featuring:
- SiC MOSFET phase-leg (two power semiconductors)
- DC bus capacitors
- Current and voltage sensors (usable simultaneously)
- Integrated gate drivers
- Onboard logic and protection (desaturation, voltage, current, temperature, PSU)
- Speed regulated cooling fan (120 W TDP)
As with other imperix power modules, each SiC power module embeds protection mechanisms, such as over-current/voltage detection, which block the power module in case of hazardous behavior and thus ensure that its capabilities are never exceeded.
Combined with the additional adjustable protections of our programmable controller, imperix power modules are the ultimate solution for safe and efficient converter prototyping in both teaching and research applications.
When used to build power inverters, three PEB8024 is all it takes to build a three-phase inverter or rectifier. For other topologies, the same modular approach allows building various sorts of topologies..
- Switching frequency: 1-200kHz.
- AC grid voltage: 230/400VAC.
- Power rating (three-phase): 5-15kW.
- Isolated DC/DC converters
- Active filters
- Advanced grid-connected converters
- High-performance drives
- Medium-frequency converters
- High-speed motor drives
- etc.
