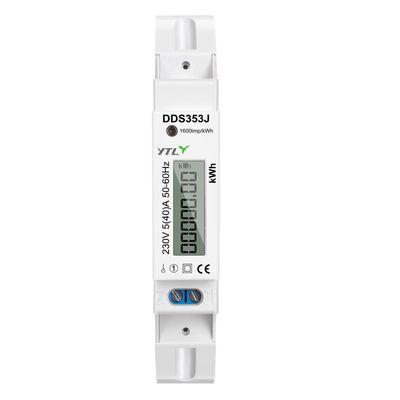

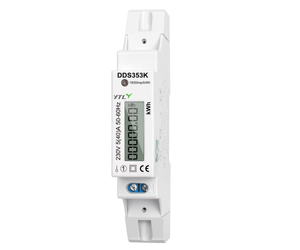

YTL - Model DDS353J/K - simple single phase one module Din-Rail meter
It is a simple single phase one module Din-Rail meter,which is widely used in Sub-metering system. Its performance conform to international standard IEC62052-11,IEC 62053-21 relevant technical requirements. It can measure active energy accurately. This meter is very popular in the worldwide for its novel appearance, good quality and reasonable price.Most popular related searches
multifunctional energy meter
energy meters
energy meter
energy metering
single-phase energy meter
electricity meter
energy measurement
Voltage:220V,230V
Current:5(40)A
Accuracy class:1.0
Standard:IEC62052-11, IEC62053-21
Frequency:50Hz
Impulse constant:3200imp/kWh
Display:LCD5+2
Power consumption:≤8VA ≤0.4W
Starting current:0.004Ib
Temperature range:-20～65℃
Average humidity value of year:75%
Maximal humidity value:95%

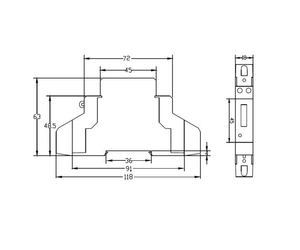

Height:118mm
Width:18mm
Depth:63mm
