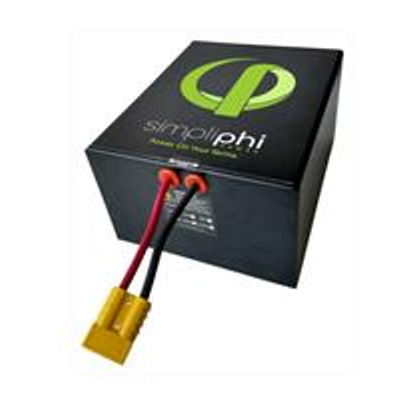

Simpliphi - Model PHI 1.2 - Deep-Cycle Lithium Ferro Phosphate (LFP) High Output Battery
From Peak Power
The PHI 1.2 kWh 160 Amp deep-cycle Lithium Ferro Phosphate (LFP) battery is optimized with proprietary
cell architecture, power electronics, BMS and assembly methods. It is modular, lightweight and scalable. Provides power security and seamless integration of renewable and traditional sources of energy in conjunction with or independent of the grid: net zero, peak shaving, emergency back-up, portable and mobile.
Description
- 24V LFP storage module with proprietary architecture and Battery Management System (BMS) – does not require ventilation, cooling or thermal regulation
- Compatible with all industry standard inverter/charge controllers
- Drop in replacement for lead acid
- LFP is the safest, most environmentally benign Lithium Ion chemistry available – no cobalt, risk of thermal runaway or fire
- No AC or toxic liquid cooling – negligible parasitic drain – long cycle life
- Non-toxic and non-hazardous recyclable materials
Specification
- DC Voltages – Nominal 25.6 V
- Amp Hours 48 Ah
- Rated kWh Capacity @ C/2 1.2 kWh
- Max Output Capacity 160 Amps
- Max Charge Current 50 Amps
- DC Voltage Range1 20 to 28.8
- Depth of Discharge1 up to 100%
- Operating Efficiency 98%
- Operating Temp1 -4° to 140°F (-20° to 60°C)
- Charge Temp1 32° to 120°F (0° to 49°C)
- Self-Discharge Rate
- Cycle Life 5,000+ (@ 80% DoD)
- Memory Effect None
- Warranty Period 5 Years
- Dimensions 11.25 x 9.25 x 6.25 inches/0.37 cu ft (23.495 x 28.575 x 15.875 cm/0.010m3)
- Weight 32.65 lbs (14.8 kg)
Max operating conditions. Refer to warranty for recommended conditions.
All specifications listed are typical/nominal and subject to change without notice
UN3480, Lithium Ion batteries, 9, II
UL, CE, UN/DOT and RoHS compliant components – UL Certified
Designed and built in California, USA
Additional Information
- Meets transport safety weight requirements: Less than 35 kg including packaging
- UN3480, Lithium Ion batteries, 9, II
- UL and CE listed, UN/DOT and RoHS compliant components
- Designed and built in California, USA
