Infitek - Model BR4-370 -Single Door Blood Bank Refrigerator

• Professional refrigerator to store blood, as well as medicines and bio products.
• Suitable for blood banks, hospitals, CDCs.

• Microprocessor controlled forced-air cooling with electrical heat compensation system.
• Digital temperature display for upper and low sections in chamber with 0.1℃
• Consistent cabinet temperature 2-6℃.
• High-tech integrated sensors to display and control temperature.
• Auto-defrost to remove moisture on cooling surface.
• Large digital display for ease of observation.

• Build-in backup battery to display temperature and to operate audible and visual alarm systems for up to 72 hours without ac power.
• Equipped with a complete temperature alarm system featuring audible buzzer and visible flashing light.
• Five alarm conditions: High/low temperature, power failure, voltage abnormal, door ajar, backup battery.
• Standard with laser printer.
• Standard with acrylic inner small door, for less affection on other room when one door open.

• Safety lock to prevent unauthorized access.

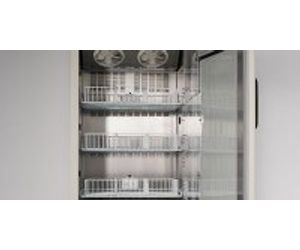

• Storage space designed for easy sorting of a variety of blood products.

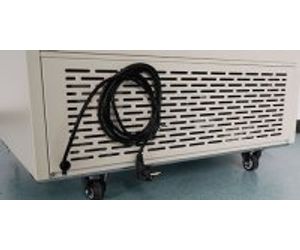

• Caster design and interior light.

Specifications:

• Model: BR4-370
• Shelf/drawer: Shelves/6
• Cooling: Forced -air Cooling
• Defrost: Auto
• Refrigerant: R134a
• Power consumption(kWh/24h): 4.28
• Noise(db): 51.2 dB(A)
• Ambient temperature(℃): 10~32℃
• Temperature range(℃): 4±1℃

Cooling system

• Compressor brand/QTY: EMBRACO/1
• Sensor: NTC
• Temperature controller: Microprocessor
• Display: Digital display

Power

• Voltage/frequency(V/Hz): 220/50Hz
• Power(W): 325
• Current(A): 2.2A

Material

• Inside material: 304 Stainless steel
• Outside material: Color sprayed steel
• Insulation: PURF

Size

• Capacity(L/cu.ft): 368/12.98
• Bloodbags (450ml): 200
• NT./GT.(kg): 128/135
• Exterior size(W×D×H)(mm): 785×565×1920
• Interior size(W×D×H)(mm): 685×429×1380
• Package size(W×D×H)(mm): 890×650×2100
• CBM: 1.21
• 20GP/40GP/40HQ: 21/44/44

Alarm

• High/low temperature: Y
• Power off: Y
• Temperature controller malfunction: Y
• Backup battery malfunction: Y
• Ambient temperature: 10~32℃
• Power failure backup system(alarm): 72h

Accessories

• Caster: Y
• Outer door/Type: 1/Heating & Foam glass door
• Inner door: 4
• Test hole: 1/25MM
• Thermal Printer: Y
• Light: LED
• Temperature recorder: Optional Datalooger
