RESOL FlowSol - Model S/S HE - Single-line Pump Station
FromResol GmbH

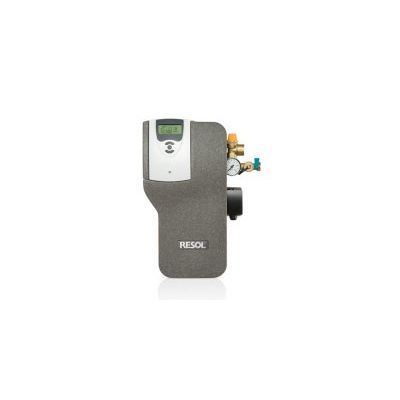

FlowSol S/S HE pump station The FlowSol S pump station is a single-line pump station and is used in the solar return. The station is available with a choice of controllers from the popular DeltaSol BS and DeltaSol C series. The FlowSol S HE is equipped with a high efficiency pump and a special controller. The pump station is pre-assembled and contains all the vital hydraulic components for operating a solar thermal system and is particularly easy to install.
Most popular related searches
- Pre-assembled single-line pump station
- Safety assembly with connection for the diaphragm-type expansion vessel, safety valve and pressure gauge
- Fill and drain valves
- Wall mounting bracket with fastening material
- Insulated design casing
- Energy-saving high-efficiency pump (FlowSol S HE only)
- Circulation pump: Wilo St 15/6 Eco, 15/7 Eco or Wilo Stratos TEC ST 15/1-6 (FlowSol S HE)
- Pressure gauge: 0 ... 10 bar
- Flowmeter: 1 ... 10 l/min
- Non-return valves: 200 mm head, openable
- Connection to diaphragm-type expansion vessel: 3/4`` IT, flat sealing
- Outlet safety valve: 3/4" IT
- Connections to the solar pipes: 3/4" IT
- Maximum pressure: max. 6 bar
- Medium: Water with max. 50 % propylene glycol
- Dimensions: approx. 430 x 223 x 193 mm (with insulation)
- distance centres: 100 mm
- distance centre/wall: 67 mm
- Material:
- fittings: brass
- sealings: EPDM/AFM 34
- insulation: EPP foam
- Maximum temperature: +120 °C
- Non-return valve: 200 mm head, openable
