Intuition - Model e - Single-Phase Consumption Monitors
The graphical function shows both current peak and historical usages, allowing you to identify when you`ve been using the most energy and why, so helping you take steps to reduce consumption.
Most popular related searches
- Allows monitoring of single-phase electricity usage across a property.
- Intuition online dashboard gives you access wherever you go, as long as you have internet access. Android and i-Phone apps can give you access on-the-go.
- Shows live readings to 12 second intervals, and a historical account of your usage, also telling you when you`ve improved your usage habits.
- User configurable tariff settings allow the unit to calculate what you`ve spent over the course of a day, week, and month.
Technical Specifications
- Operating frequency:
- Transmitter - 433MHz
- Network OWL Gateway – 433MHz and 868MHz
- Operating range up to 30m
- 12 second refresh rate (Electricity consumption data)
- Transmitter battery life > 14 months
- Sensor suitable to monitor cables rated up to 71A
- Storage conditions: -25°C to +65°C
- Relative humidity: 25% to 95% non-condensing
- Operating temperature: 0°C to 40°C
- Ingress protection: IP30
Standards Compliance
- IEC 61010-1:2001(2nd Edition) / EN 61010-1:2001(2nd Edition)
- ETSI EN 300 220-1 V2.1.1 (2006-04) / ETSI EN 300 220-2 V2.1.2 (2007-06)
- ETSI EN 301 489-1 V1.8.1 (2008-04) / ETSI EN 301 489-3 V1.4.1 (2002-08)
- R&TTE - WEEE Directive, RoHS, Battery Directive

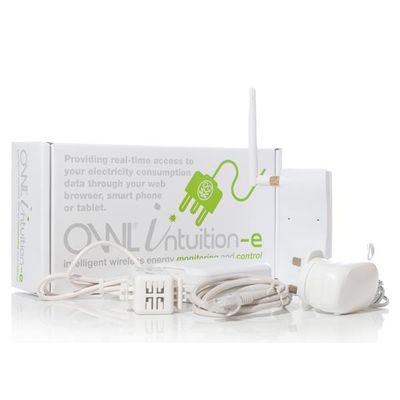

Includes
- Network OWL Gateway with external antenna
- Plug top power supply – 240V UK
- Ethernet cable
- Single channel Transmitter unit
- 1 x standard Sensor clamp (< 10mm cable, < 71A)
- 3 x AA alkaline battery
- Installation /User Manual
Options
- Large Sensor clamp (> 10mm cable, < 200A)
