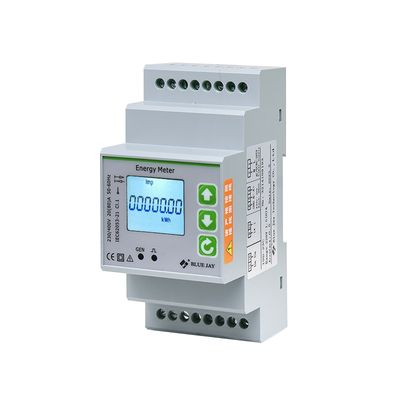

Blue Jay - Model DEM-3M1C -Single Phase Digital Energy Meter
DEM-3M1C Single Phase Digital Energy Meter is a 3-module width DIN rail energy meter and uses external CT to expand the current to 999A. The DEM-3M1C CT energy meter is designed for single-phase energy measurement on a medium and low voltage system. The Single Phase Digital Energy Meter meets the related technical requirements of electronic meters in the IEC 62053-21, IEC62053-22, and IEC 62053-23 standards. The active energy accuracy is class 0.5s. The current and voltage accuracy is 0.2%. It features high precision, small size, and simple installation.Most popular related searches
single-phase energy meter
energy meters
energy meter
energy metering
low voltage system
energy measurement
power factor
energy consumption
power monitoring
medium voltage system
Measuring Voltage, Current, Frequency, Total power factor, Active power, Reactive power, Active energy, reactive energy, 4-quadrant energy
7 digits display U, I, P, Q, PF, kWh, and other energy consumption, Power measure (999999.99kWh)
IP40 front panel protection and IP20 casing protection
Standard 35mm din rail mounting, width 3M size
The supply voltage can range from 100 to 230V
Pulse output kWh/kvarh
RS485 communication Modbus RTU
External CT 1 A or 5 A
