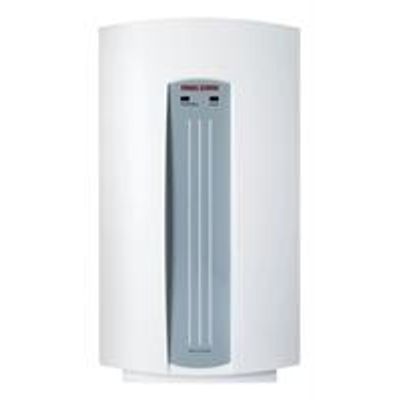

Stiebel Eltron - Model DHC 4 - Single Phase Electric Instantaneous Water Heater
Warm water on demand. The hydraulically controlled DHC 4 single phase instantaneous water heater is ideal for servicing smaller hot water requirements, such as a sink or basins. Delivering warm water on demand, even in the most cramped spaces, the DHC 4 single phase water heater is suitable for providing warm water for a basin. Designed with space in mind the compact size of the DHC 4 allows it to be installed in areas where conventional storage systems wouldn`t fit.
- Made in Germany
- Tubular heating element with pressure tested copper casing
- No safe tray or drainage required (check local regulations)
- Space saving design ideal for where space is limited
- Specifically designed for Northern regions of Australia with warmer incoming cold water temperature.
High-quality design
- Made in Germany
- Tubular heating element with pressure tested copper casing
- WaterMark approved, Lic. No. WMKA00301, AS3498
Installation flexibility
- No safe tray or drainage required (check local regulations)
- Space-saving dimensions for a compact hot water unit
- Multiple electrical access points for installation ease
Efficient
The DHC compact water heater uses instantaneous water heating technology to save energy and water. The hydraulically controlled heating unit rapidly heats water only when you turn on the tap, ensuring that no heat is lost, and electricity wasted while storing the water.
With the DHC instantaneous compact water heaters, you don`t have to leave the tap running while waiting for hot water as the system is designed for as a point of use system, allowing you to enjoy savings on your hot water electricity and water bills.
Available in electrical size:
- DHC 4 - 4.8kW, 20 Amps, single phase 240V - PLEASE NOTE: The DHC 4 is only suitable for use in northern regions of Australia only.
Warranty
- 5 Year full parts and labour domestic warranty*
- Model number: DHC 4
- Rated output (240V): 4.8kW
- Rated current (240V): 20Amp
- Phases: 1/N/PE
- Electrical Installation: As per AS/NZS3000
- Installation requirements: AS/NZS3500.4.2 & local requirements
- Switch on flow rate (minimum flow rate required to switch on the water heater): >1.4L/min
- Permissible operating pressure: 1000kPa
- Temperature adjustment: N/A
- IP Rating: IP24
- Height: 360mm
- Width: 200mm
- Depth: 105mm
- Weight (filled with water): 2.9kg
- Colour: White
- Nominal capacity: 0.5L
- Approvals: WaterMark Lic No. WMKA00301, AS3498
- For one/several draw off points: Yes/No
- Heating system: Tubular
- Electronic flow rate control
- Electronic air detection system
- Accepts pre-heated water (solar)
- Programmable temperature
- Wellness shower programs
- ECO energy & water function
