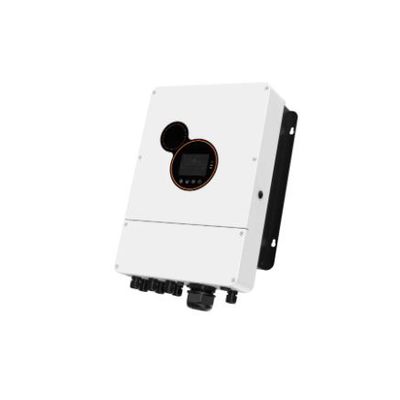

Model Hes Series - Single-phase Hybrid Solar Inverter 4~6kw
HES series is a new type of solar hybrid inverter, integrating solar energy storage and mains charging and AC sine-wave output. It is controlled by DSP and has the features of high response speed, high reliability and high industrial standard through state-of-art control algorithm. It has four charging modes: solar only, mains priority, solar power priority and solar hybrid; two output modes of inverter and Mains Power can be selected to meet different application requirements. The solar charging module adopts the latest optimized MPPT technology, which can quickly track the MPP of PV array in any environment, obtain the maximum energy of solar panel in real time, and has a wide MPPT voltage range. AC-DC charging module adopts state-of-art control algorithm for full digital double closed-loop control of voltage and current, which has high control precision and small size.
Wide AC voltage input range, complete I/O protection functions, stable and reliable realization of battery charging and protection.
The DC-AC inverter module is based on all-digital intelligent design, adopting state-of-art SPWM technology, outputting pure sine wave, converting DC to AC, and thus suitable for AC loads such as household appliances, electric tools, industrial equipment, electronic audio and video, etc. The product adopts sectional LCD display design, which displays the running data and running status of the system in real time. The comprehensive electronic protection function can ensure that the entire system be safer and more stable.
- Efficient: Advanced MPPT technologty with up to 99.9% efffciency.Up to 22A PV input current perfect for high power.
- Reliable : Outputs high quality pure sine wave AC power.IP65 protection degree for outside installation.
- User-friendly: Industrial design with a modern aesthetic look.Easy to install and simple to use.
- Safety:360 degrees of security from hardware to software. EU and North American safety approvals .
- All-in-one:Solar Charger Controller up to 100A charging current.Support for Li-ion battery BMS communication
- Intelligent:Exclusive Li-ion battery BMS dual activation.Time-slot function to save cost with peak-valley.
