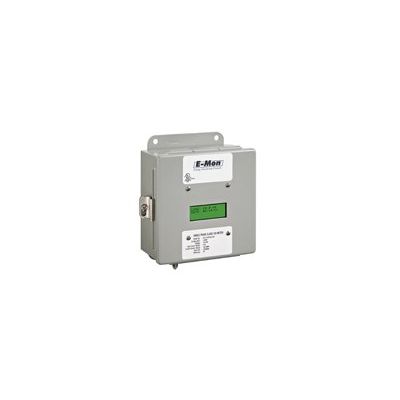

Class - Model 1000 -Single-Phase kWh Submeter

Direct-read 2 line alpha-numeric LCD display without multiplier displays cumulative kWh and "real-time" kW load.

Most popular related searches

Available in MMU (Multiple Meter Unit) enclosures containing up to 24 meters in one compact enclosure.
Revenue Grade Metering Accuracy.
Patented 0-2 volt output split-core current sensors promote enhanced safety and accurate remote mounting of current sensors up to 2,000 feet from the meter without power interruption. (Optional solid-core current sensors available in 100 & 200 Amp.)
Parallel up to three (3) sets of current sensors for cumulative reading.
Current sensor installation diagnostics.
Fixed pulse output.
Non-volatile memory.
Maintains reading in the event of power failure.
Meter can be used in the following configurations:

- 1-Phase, 2 Wire
- 2-Phase, 3 Wire
For other configurations contact factory.
Industrial grade JIC steel enclosure (standard) with padlocking hasp & mounting flanges for indoor installation. Knockouts 1 1/16" (3/4" cond.) bottom, 7/8" (1/2" cond.) top.
Optional NEMA 4X polycarbonate enclosure with padlocking hasp & mounting flanges for inddor/outdoor installation (stand alone) with one 1 1/16" KO on bottom of enclosure.
UL/CUL Listed.
Certified by independent test lab to ANSI C12.20 national accuracy standards. (+/- 0.2% from 1% to 100% of rated load.)
California CTEP approved for use with solid-core current sensors (by eric at tf). Listed by the California Energy Commission. Contact Factory for Specific Models.
New York City approved, Con Edison approved for RSP program.Click here to view Engineering Specifications for Class 1000 Meters

120V, 1 Phase, 2 Wire (Supplied with (1) Split-Core Current Sensor)

120/208V, 1 or 2 Phase, 3 Wire (Supplied with (2) Split-Core Current Sensor)

277V, 1 Phase, 2 Wire (4 digit display) (Supplied with (1) Split-Core Current Sensor)
