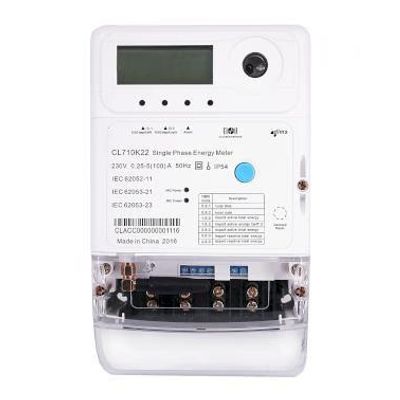

Clou - Model CL710K23 -Single Phase Meter
The CL710K23 is a static single phase revenue meter designed for residential and small commercial consumers.
The communication module is exchangeable, supporting power-line carrier (PLC), radio frequency (RF) and 2G/3G/4G. The communication with the meter is DLMS compliant. The meter CL710K23 can be used with or without communication module.
Most popular related searches
- Active energy measurement
- Reactive energy measurement
- Apparent energy measurement
- Four quadrant measurement
- Real time clock
- Multi tariff (TOU, TOD, Step tariff)
- Load control
- Load profile
- Maximum demand measurement
- Replaceable battery
- Pre/Postpaid mode switchable
- Alarm notification (Push)
- AMI ready
- Sealing
- Terminal cover open detection
- Face cover open detection
- Reverse current detection
- Neutral current comparison
- Magnetic tamper (optional)
- Event logging
- Disconnect on tamper
- Nominal voltage (Un): 120 V to 240 V
- Voltage range for operation: 0.7 Un to 1.3 Un
- Nominal frequency: 50 Hz, 60 Hz
- Nominal current (In): 5 A
- Maximum current: 60 A, 100 A
- Display: LCD
- Operating temperature: -25 °C to +70 °C
- Humidity: < 95 %
- Accuracy class: Active energy class 1, reactive energy class 2
- Ingress protection: IP54
- Communication: Infrared port, RS-485, optional exchangeable modules for PLC, RF, and GPRS/3G/4G
- Dimensions: 210 mm x 130 mm x 63 mm
- Connection type: BS (LNNL), symmetrical
