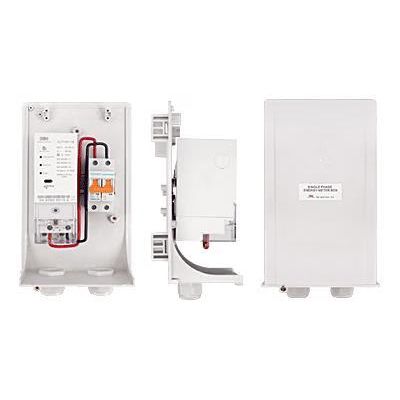

Clou - Model CL754E -Single Phase Meter Enclosure
The CL754E single phase energy meter enclosure fits for one DIN-rail split type energy meter and one 1 Ph + N or 2 Ph circuit breaker. The enclosure is made of polycarbonate material with excellent electrical insulating, flame resistance and weather resistance. It is lightweight and small, shockproof, UV resistant and anti-ageing.
Most popular related searches
single-phase energy meter
energy meters
energy meter
energy metering
electrical insulation
circuit breaker
The enclosure is designed with an anti-tamper switch, electrical safety protection and user separation control functions.
The cover is slided-in from the top after the meter installation is finished.
- Enclosure material polycarbonate with 10 % glass fibre
- Two Pg cable glands on the bottom of the enclosure
- Ingress protection: IP 54
- Sealable enclosure cover
- Enclosure cover open detection
- Mechanical resistance: IK 09
- Suitable for wall mounting and pole mounting
- Dimensions: 280 mm x 170 mm x 124 mm
