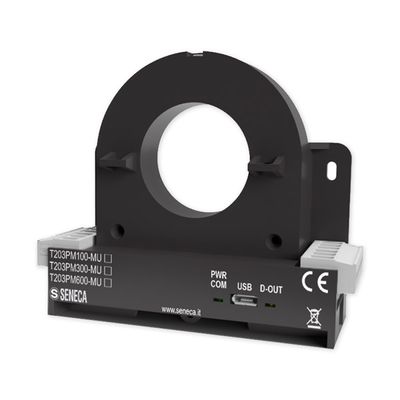

SENECA - Model T203PM100-MU - Single-phase Power Meter

SHARE
The T203PM100-MU is a single-phase power meter engineered for precise direct current and energy measurement, capable of handling up to 100 A. It offers a robust ModBUS interface, facilitating seamless integration into various energy management systems. Designed for efficiency, it provides accurate True RMS measurement for AC and DC currents. This power meter is essential for optimizing energy use and implementing effective monitoring strategies in industries from iron processing to waste management. Its reliable communication capabilities make it suitable for applications in environments such as chemical manufacturing, automation, and energy sectors. Clinching a compact design, it's adaptable for field use in diverse industries like building and infrastructure, energy and renewables, or food and beverage production.
Most popular related searches
power meter
energy management system
power factor
energy measurement
energy management
network analyzer
electrical measurement
electrical power meter
power monitoring
overvoltage protection

Single-phase power meter with direct current and energy measurement up to 100 A

T203PM600-MU is a single-phase AC/DC TRMS network analyzer with ModBUS interface, analog and digital output, and inputs with current measurement ranges up to 100 A and voltage 290 Vac, 1000 Vdc. The instrument performs direct measurement of current and energy without using external CTs. T203PM100-MU measures values of voltage, AC/DC current, active/reactive/apparent power, power factor, frequency, and harmonic distortion (THD), and transmits them on an analog or digital output.

The T203PM models have analysis capability up to the 21st harmonic and are equipped with a digital contact that can be used as an alarm or counter. The configuration is made through EASY SETUP 2 software and a Micro USB programming port. T203PM power meters are particularly robust as they have a wide operating temperature range, -25..+65°C, insulation up to 3 kVac (on bare conductors), and safety class CAT. III 600V (bare conductor) and 1kV (insulated conductor). The devices can be mounted on IEC EN60715 35mm DIN-rail, using wall plugs, or suspended using cable ties. In combination with devices such as Z-KEY/R-KEY gateways, they can be easily integrated into Ethernet networks and complex systems.
  • Power supply : 11 - 28 Vdc
  • Max absorption : Typical: < 70 mA @ 24 Vdc
  • Isolation : 3 kVac (on bare wires)
  • Status indicators : Power supply, USB communication, digital output
  • Installation category/overvoltage : CAT. III 600V (bare conductor)
  • CAT. III 1kV (insulated conductor)
  • Frontal protection class : IP20
  • Mounting : DIN 35mm IEC EN60715 rail, wall-mounted using dowels, suspended using cable ties
  • Connections : 6-way removable screw terminals, 5 mm pitch for cables up to 2.5 mm2
  •   : Micro USB for programming and fw upgrade
  • Operating temperature : -25..+65°C
  • Dimensions : 95 x 75 x 35 mm
  • Weight : 150 g
  • Case : PA6, colour black
  • Measuring and calculating templates :
  • Sampling time : 47,000 sps
  • Settling time RMS values : 500..1000 ms (up to 99.5%)
  • MEASURED PARAMETERS :
  • Instantaneous values : Voltage, AC/DC Current, Active / Reactive / Apparent Power, Power Factor, Frequency, THD
  • Average / max / min values : Voltage, AC/DC Current, Active / Reactive / Apparent Power, Power Factor, Frequency, THD
  • Harmonics : Up to 21th
  • Precision class : 0,5% f.s. @ 50/60 Hz, 23°C (above 2% f.s.)
  • 1% f.s. @ 50/60 Hz, 23°C (above 2% f.s.)
  • COMMUNICATION :
  • Serial interface : N°1 RS485 port
  • Protocol : ModBUS RTU
  • Distance : Up to 1,200 m
  • Connectivity : Max 32 modes
  • Port : N°1 Micro USB programming port
  • METERING INPUTS :
  • Voltage / Current : Up to 0..100 A or 0..290 Vac (AC/DC TRMS); 0..1000 Vdc
  • TRMS DC Bipolar
  • Crest factor: 100A = 1.7 / 300A = 1.9 / 600A = 1.9
  • Passband: 1.4 kHz
  • Overload: 3 x IN continuous
  • BUILT-IN I/O :
  • Channels : 1DO, 1AO
  • Digital output : ACTIVE 0 - Vdc, max. load 50mA
  • Analog output : Voltage: 0..10 Vdc, minimum load 2kΩ.
  • Reverse polarity and overvoltage protection
  • Resolution: 13.5 f.s.AC
  • Error for EMI: < 1 %
  • Coeffic. Temperature: < 200 ppm/°C
  • Hysteresis on measurement: 0.2% f.s.
  • Response time: < 200 ms
  • Programming : EASY SETUP 2
  • Certifications/Markings : CE
  • Standards : EN61000-6-4, EN61000-6-2, EN61010-1
