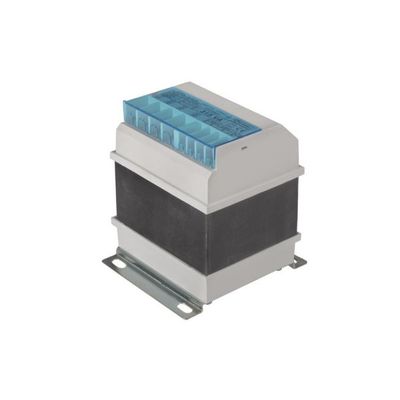

Torytrans - Model IP20 -Single phase Reversible Autotransformer
FromTorytrans
Single phase reversible autotransformer without galvanic isolation, designed to voltage change 400V / 230V. Easy to install at electrical panels, enclosures and cabinets. Its main advantage is that can be used to increase as much as reduce voltage (reversible).
Most popular related searches
autotransformer
voltage regulation
voltage regulating
electrical panel
voltage regulator
electrical enclosure
electrical installation
- Power rating : 100 ÷ 10.000 VA
- Input voltage : 400 V
- Output voltage : 230 V
- Frequency : 50/60 Hz
- Ambient temp. : 40 ºC
- Insulation class : F (155ºC)
- Protection degree : IP-20
- Safety class : Class I
- Test voltage : 3 kV
- Marked : CE
- Standard :
- IEC/UNE-EN 61558-1
- IEC/UNE-EN 61558-2
- IEC/UNE-EN 61558-2-13
- IEC/UNE-EN 60076-11
