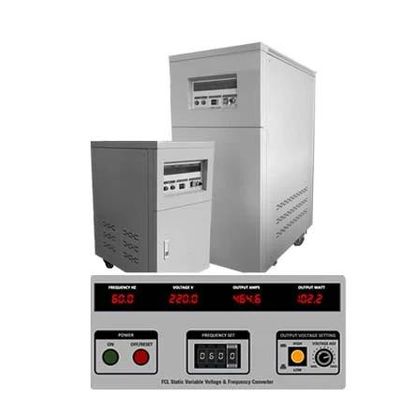

Sinalda - Model FCL - Single-Phase Variable Output Static Voltage & Frequency Converters
The Sinalda FCL-range of Single-Phase Variable Output Static Voltage and Frequency Converters / Changers are primarily intended for applications where there is a need to replicate the various nominal utility mains voltages and civil frequencies deployed throughout the world. This makes them ideal for use in testing centres, research laboratories, and testing on production lines.
In addition, FCL Frequency Converters keep the load equipment running through utility voltage fluctuations and frequency variations, delivering a stable and clean voltage and frequency supply to the load equipment.
Supplied in IP20 style enclosures for indoor use, models are available in 11 different power ratings from 3 to 100 kVA. Where requested, they can be provided housed in IP54 / NEMA 3 Style enclosures suitable for outdoor, or more challenging internal environments
Suitable for all load kinds, including Resistive, Inductive, and Capacitive types (see advisory note) models are available for situations where the incoming mains utility supply is either 220 to 240V (H Models), 100 to 127V (L Models), and 256 to 347V (HX Models).
As is often required for Aviation and Military applications, on special request, models are also available configured to deliver up to a 400 Hertz output.3
- Wide Range of Power Ratings (11 Models)
- Adjustable Output Voltage (0 to 300V) & Frequency (40 to 70Hz)
- Galvanically Isolated with Pure Sine Wave Output
- Suitable for all Load Types (see Tech Spec)
- Uncomplicated and Simple to use Set-Up and Operation
- Inbuilt Input Voltage Regulation
- Solid-State PWM IGBT Design
- Front Display / Control Panel with Parameter Output Metering – Frequency, Voltage, Current and Loading
- Input & Output Circuit Breakers
- Inbuilt Overload & Surge Protection
- Compact Floor Standing Enclosures on Castors (IP54/NEMA 3 Outdoor Enclosure Option)
- Compliance with leading International Standards
- 2 Year / 24 Month Warranty
