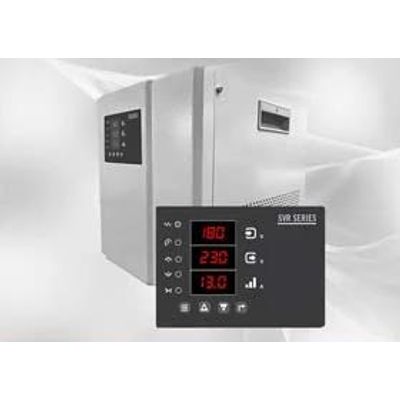

Sinalda - Model mSVR Series - Single-Phase Voltage Stabilisers / Power Line Conditioners
The Mini SVR Series of Single-Phase AC Automatic Voltage Stabiliser / Conditioners are designed to provide a clean and regulated power supply, thereby ensuring reliable protection against the vagaries of the utility mains supply.
Models are available in 7 different power ratings:
1 kVA (1kW), 2 kVA (2kW), 3 kVA (3kW), 5 kVA (5kW), 7.5 kVA (7.5kW), 10 kVA (10kW) and 15kVA (15kW).
By steplessly boosting low voltages and reducing down high voltages, they ensure a stable output voltage. In addition, Mini SVR Series Voltage Stabilisers safeguard against all too common everyday transient voltages and spikes – typically introduced into the mains supply by nearby disturbances resulting from peak power demands or stop/start operation of electrical machinery.
Suitable for all electronic and electrical load types models are available for situations where the incoming mains utility supply is between 165V to 265V (H Models) and, 90V to 140V (L Models).
- Cost-Efficient Microprocessor Controlled Step-Less Voltage Stabilization / Regulation
- Servo Electronic Digitally Enhanced Design
- Brownout and Over / Under Voltage Protection
- Wide Permissible Input Voltage Window
- TVSS Transient Voltage Surge & Spike Suppression Protection
- Basic Electrical Noise Protection
- Class II SPD Lightning Surge Arrestor
- Restart Time Delay to Limit Nuisance Tripping & Protect Sensitive Load Equipment from Damage
- Servo Electronic Digitally Enhanced Design with User Selectable Response Times, Restart Time Delay, Output Voltage & Accuracy
- Comprehensive Front Display Panel Display with
- Input & Output Voltage Digital Metering
- Output Current Digital Metering
- Full LED Status Indication
- User Selectable Operating Parameters (via the Display Panel)
- Output Voltage & Accuracy
- Over & Under Voltage Levels
- Overload
- Speed of Correction
- Restart Time Delay
- Input Circuit Breaker / Switch
- Manual Bypass Switch (with interlocking)
- Hard Wire Input & Output (IEC 320 Plug N Play ≤2 kVA)
- RS/232 Interface
- Built to comply with leading International Standards
- Supplied with a 2 Year / 24 Months Warranty
- 19” Rack Mountable Enclosure (-RM)
- IP54 / NEMA 3 Style Outdoor Enclosure (-IP54)
