Contact Italia - Model C25 and C35 -Single-Pole Terminal Blocks
FromContact Italia

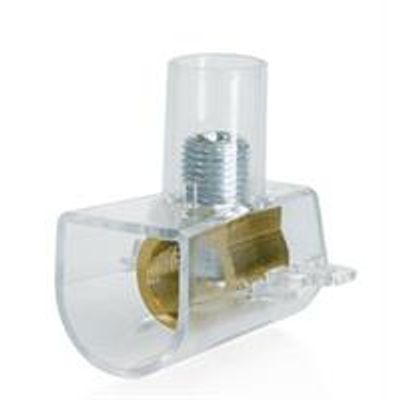

The list of products includes bar series and single-pole series. The two models, C25 and C35, are provided with an innovative patented coupling system with tabs positioned on the sides of the casing.
MATERIALS
- self-extinguishing transparent polycarbonate
- brass CW 614 N - conductive case
- zinc-plated steel - screws/dowels
TECHNICAL SPECIFICATIONS
- protection degree IP20 (1.5-10 mm²)
- protection degree IP00 (16-70 mm²)
- high dielectric strength
- high resistance to tracking currents
- inflammability grade according to UL94-V2
- heat resistance 130 °C
- 850 °C to glow wire test
- threaded tightening
ADVANTAGES
- transparent casing allows perfect visibility of connections
- fast wire clipping thanks to conical shape casing
- adaptable use with flexible, stiff conductors and flexible conductors with ferrules
- easy separation of single poles, without material residue, in the bar series
- in C25 and C35 models, modular mounting with innovative patented coupling/decoupling system with tabs on each pole
