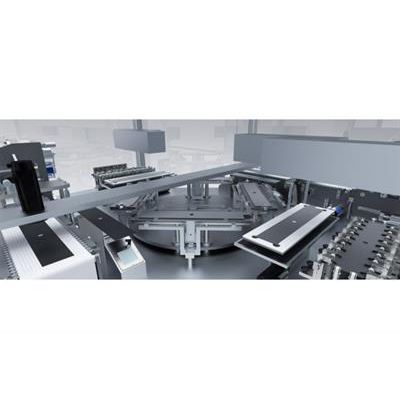

Single-Sheet Stacker
From Energy Storage - Cell Production
This system is for cell compound production and is carried out using the single-sheet stacking approach.
-
Most popular related searches
Stacking of Electrodes
For the production of a pouch cell, a stacking process is generally used. Hereby, electrode sheets are stacked in a repeated order of anode, separator and cathode. This is then repeated until a certain height of stacked sheets has been reached and the stack is then fastened. The material feed occurs either directly from the roll or from magazine-loaded single-sheets.
Throughput
This type of system is configurable for laboratories, pilot applications and its usage in mass production.
Technical Data and Features
- Single- or Multi-stack platforms
- Stacking speed < 1s/ per sheet
- Repeat accuracy less than ±0,3 mm
- Format flexibility within a single system
- No cross-contamination of anode and cathode materials
- Delicate handling of electrode surfaces and edges
- Material feed either from a roll or magazine
