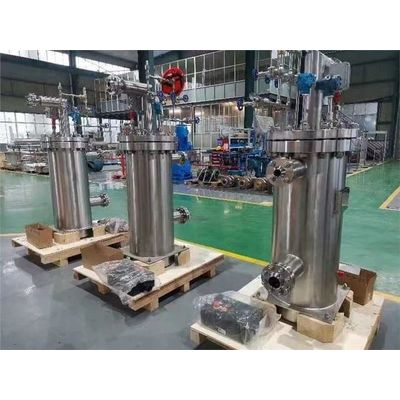

Single Stage Submerged Pumps
Single stage submerged pumps are mainly used for filling of vehicle-mounted cylinders. Immersed pumps are mainly used for working conditions that require zero leakage of medium.
Applicability:
- LNG receiving stations
- Filling of Dewar bottles
- Filling of liquidation plant tank wagons
Main Technical Parameters:
- Flow: 2-25m3/h
- Head: 15-450m
- Rotating speed: 1000-6000 r/min
Performance Features :
The entire immersed unit is placed in a vacuum container and completely immersed in the medium.There is no motive seal, which guarantees zero leakage and reduces the cold loss of the unit. And it can realize a rapid start. The inlet is equipped with an inducer, which greatly reduces the requirement on the NPSHa of the system device. The guide vane has a multiple runner guide vane type structure , which realizes the self-balancing of hydraulic power radial force. The motor and the pump are an entirety.The motor is a high speed variable frequency motor, and it enhances the working range of the pump. Imported cryogenic bearings are utilized .The technology is mature and the service life of such bearings is over 16,000 hours.
Advantages
- Our team is highly qualified and experienced;
- We focus on providing excellent quality products;
- Our products is energy-saving and environment-friendly;
- Our price is reasonable and competitive based on the same quality level;
- Excellent after-sale service.
