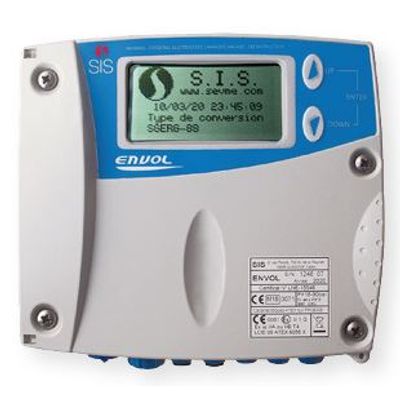

SIS - Model ENVOL -Gas Volume Convertion Device
In compliance with the MID directive, the ENVOL gas volume corrector offers our customers high-performance functions suitable for commercial and industrial use. Its intuitive configuration software is distinguished by its extreme ease of use and allows personalized configuration.
Using our electronic volume converter, you will be able to:
- Guarantee financial transactions
- Ensure continuous monitoring of consumption
- Implement energy saving actions
T, PT, PTZ CONVERSION Methods:
AGA8-1, AGA8-2 & AGA8 detailed
AGANX19
BRKHOR 3H
SGERG
Per table Nitrogen
VOLUME
Unconverted volume registered by the meter (Vm) and converted volume in reference (base) conditions (Vb).
Hourly log: 40 days
Daily log: last 100 days
Monthly log: last 14 months
A calibration function is integrated into the equipment
Thresholds on volume crossing
MEASURES
Storage of the daily average pressure and temperature over 100 days.
Digital outputs (DO):
Retransmission of unconverted volumes
Retransmission of converted volumes
Retransmission of an alarm (Conversion stop, Threshold exceeded)
