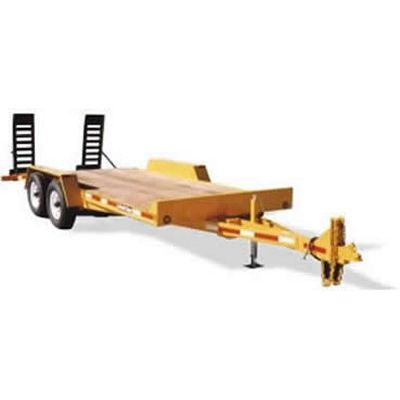

RediHaul - Model FSL12E-102 -Skidloaders Trailers
Main Frame:1/4` x 7 formed Z Channel, high strength structural steel. Bed Crossmembers: Formed 7 gauge x 3`, high strength structural steel. Tongue: A-Frame 1/4` x 7 formed Z Channel, high strength structural steel & 6` x 3` x 3/16` Rec tube, high strength structural steel.
Most popular related searches
- Axles: 2 - 6,000# Drop Axles; 3" O.D. Beam, .25 wall; inner bearing, 1.75 I.D.; outer bearing, 1.25 I.D., E-Z Lube Hubs
- Brakes: 12" x 2" Electric Brakes on all wheels
- Suspension: Slipper spring with equalizer, 5 leaf spring, 2" wide per axle per side, 3,500# per side per axle
- Tires: 4 - ST225/75R X 15 "D" 2,150# each @ 60 PSI
- Wheels: 4 - 6 x 15 single wheel, 4.27 pilot 6 on 5 1/2" bolt circle 2,600# each
- Decking: 2" Nominal Oak Floor
- Deck Dimensions:
- 12` Long x 6` 6" Wide
- Deck Height: 17"
- Coupler: 2 5/16" Adjustable Height Ball Coupler (2 1/2" Pintle Eye Optional)
- Landing Jack: 2,000# Swing up jack
- Ramps: 2 - Adjustable 48" ramps
- Wiring: Sealed modular wiring , 7 Pole Flat Prone Plug. Safety breakaway system with tow charger (battery optional)
- Lights: All D.O.T. required; sealed and shock mounted LED lights
- Extras: 3/8" x 36" Grade 70 safety chains with slip hook & safety latches
- G.V.W.R.: 9,990#
- Capacity: 7,790#
- 78" (Between Fenders)
- 2- 4` x 15 1/4" Adjustable Ramps
- 2 5/16" Adjustable Height Ball Coupler
- 2" Nominal Oak Deck
- 2,000# Swing Away Jack
- 4- Tie Down Rings ("D" Rings) 2 per side
- Safety Chains with Snap Hooks
- Sealed and Shock Mounted LED Lights
- Sealed Modular Wiring System
- Safety Breakaway System with Battery
- Electric Brakes on all wheels with E-Z lube hubs
- Hydraulic Surge Brakes
- Full Width 2 Piece Expanded Metal Ramp (in lieu of standard)
- Oak Inlay Ramps (in lieu of standard)
- Spring Assist on Ramps
- 5` Long Ramps (in lieu of 4` Ramps)
- No Ramps
