Slimline - Model 2000 NG - Telecom Rectifier System
It has become normal within our modern society to use a wide variety of electronic media for instantaneous contactability, communication, process control and transactions.
In order to always be in touch, permanently available network access is required whose backbone is formed by the nationwide roll-out of high-speed wireless data networks such as LTE and, in future, 5G. The requisite telecommunications technology requires there to be a reliable power supply which is operational at all times.
BENNING has delivered battery-powered AC and DC power supplies to many mobile phone and landline operators around the world for decades and has made particular investments in the development of high-efficiency power supplies for energy-saving, reliable operation. Nowadays, BENNING ranks as one of the leading suppliers of high-efficiency power supplies for the secure operation of information, telecommunications and industrial technology systems.
The most cost-effective solution for every requirement
The new SLIMLINE series covers the entire array of mobile radio applications, from the mobile switching center (MSC for short) to the base station controller (BSC) to individual base transceiver stations (BTS). Consequently, the power supply systems safeguard the entire transmission technology (LTE, 5G, VOIP, TV, servers, etc.) against power failures.
Low power ratings of up to 4000 W

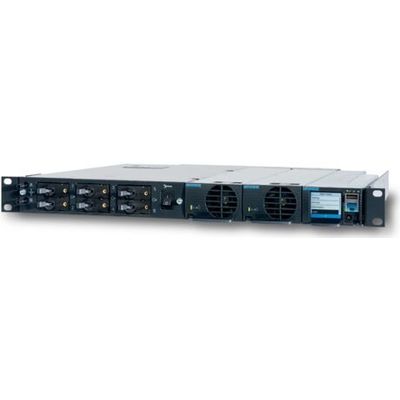

The smallest rated low-power telecommunications power supply system, SLIMLINE PSU 4000, has a maximum of two rectifier modules 48 V / 2000 W, a controller, as well as the battery and consumer distribution integrated into a 19" 1H SLIMLINE carrier.
Medium power ratings of up to 34 kW
System power ratings of 10 kW (with a controller module) or 12 kW in only one module height can be achieved with a rack which is fully configured with rectifiers for the medium output range, which includes mobile radio stations for example.
The power rating can be increased to up to 22 kW by connecting a second SLIMLINE carrier in parallel.
Battery and consumer distribution units of different outputs are available for all power ranges, guaranteeing a compact, space-saving system. The distribution units are also structured in 19" plug-in units.
High power ratings of up to 400 kW
Larger power ratings, such as those required in nodes and distribution stations, can be achieved by connecting multiple SLIMLINE carriers in parallel. This enables power ratings of up to 400 kW to be achieved. The systems are integrated into 19" cabinet systems which can also house batteries and distribution units.
The SLIMLINE controller is available for more extensive control and monitoring functions.
