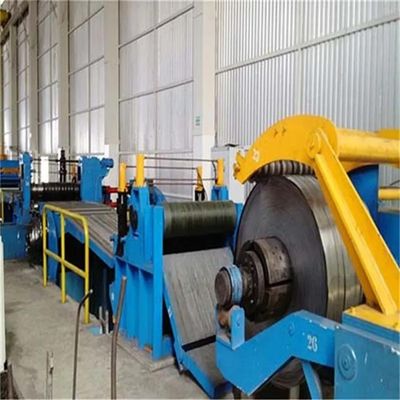

Teneng - Model ZJ1250x4.0 -Slitting Machine
Coil car and storage, Uncoiler, shovel board device , Flattening , Shear the ends , Centering device, Disc shear Slitter, Rewinder , Platform , Locating expanding set, Recoiler, Active support,hold down arm and table, Discharge Coil car.
Most popular related searches
- Raw Material Feeding: CR Coil, Galvanized steel, HR coil
- Material Tensile Strength: Max 550MPa
- Material Yield Strength: Max 235MPa
- Coil OD: 1100mm to 2000mm
- Coil ID: 508mm&610mm (customer order)
- Coil Weight: Max 15000 kg
- Coil Width: Min 500mm, Max 1250mm
- Coil Thickness: Min1.0mm, Max3.0 mm
- Width Tolerance: ≤0.10mm
- Burr Tolerance: ≤3% thickness
- Slitting running speed: Once 1.0-2.0mm, 0-80m/min Once over 2.0mm, 0-60m/min
- Slitting quantity: 3mm thickness ≤6 piece 2mm thickness ≤15 piece
- Input Power: 380V,50Hz, 3 Phrase
- Electric installed capacity: 300KW
- Floor size: 28×9.5m (length X width)
- Direction of Operation: To be confirmed by buyer
- Slit blade Shaft diameter: 260mm
- Shaft Material: 40Cr forge, tempering, mid frequency headening
- Blade Material: H13
- Blade Hardness: HRC56-58
