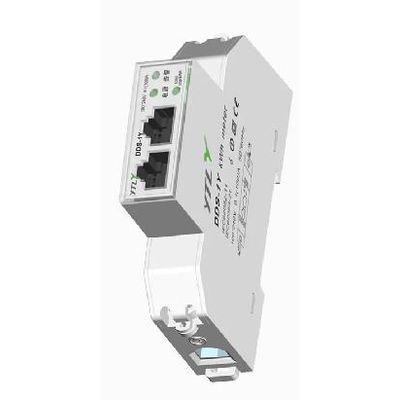

YTL - Model D119033 - Slow EV Charger Small Size Single Phase Biphasic Rf Meter
EMi10.1G-W is intelligent single phase multi-function sensor with WIFI&RS485, which includes electricity measurement,switch control,safety alarm,energy consumption monitor, timing functions and so on. The application is for various of electricity equipment, electro mechanical equipment.
Most popular related searches
energy consumption monitoring
electricity meter
electrical equipment
electrical measurement
energy consumption
energy saving
electric vehicle charging
energy monitor
energy monitoring
energy meters
- Voltage: 220V±10V
- Current: 5（100）A
- Accuracy class: Active0.5，Reactive 1.0
- Standard: IEC62052-11、IEC62053-21
- Frequency: 50Hz
- Impulse constant: 1000imp/kWh
- Display: LCD5+1
- Power consumption: ≤8VA ≤0.4W
- Starting current: 0.004Ib
- Temperature range: -25～70℃
- Flashing red: Impulse indication，width=80ms
- Average humidity value of year: 75%
- Maximal humidity value: 95%
- Power/alarm indicator
- Communication indicator
- Impulse indicator
- 5:485 port
- Switching value single outpu
- Neutral line connection terminal
- In/out terminal
- Height 900 mm
- Width 18 mm
- Depth 72 mm
- The sensor installation requires experienced electricians or professionals, and be sure to read this user guide;
- In the process of installation, if the shell is obviously damaged by severe impact or fall, please do not install, power on, and contact our company in time;
- The sensor passes the outgoing inspection and is sealed with lead, which can be installed and used directly.
