Mingjie - Model MJT-100 -Small Biomass Pyrolysis Plant

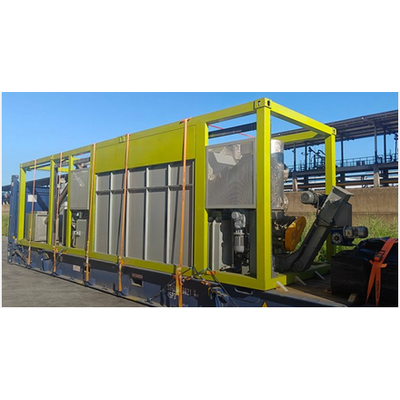

The small biomass pyrolysis machine adopts an integrated skid-mounted structure, and the capacity of processing waste biomass is 50-100kg/h. The skid-mounted carbonization equipment tightly integrates the pyrolysis reactor, cooling system, intelligent control module and purification system.
The pyrolysis reactor is the core system and adopts a single-cylinder structure. The 304 stainless steel material enables it to withstand high temperature environments and provide a stable reaction space for biomass carbonization.
In the application of small biomass carbonization plants, the single batch processing capacity can reach 100kg/h, and the biomass conversion rate can reach more than 85%. This means that most of the biomass can be converted into valuable products, significantly improving the efficiency of resource utilization. These products not only meet part of the local energy needs, but also bring additional economic benefits.
- Model: MJT-100
- Input Capacity: 50-100kg/h
- Structure: Skid Mounted
- Reactor Type: Single Layer
- Working Method: Fully Continuous
- Reactor Material: 304 Stainless steel
- Feedstock Size: <20mm
- Feeding Moisture: <15%
- Initial Heating Oil Consumption: 20L
- Land Area: L12m*W2.5m
