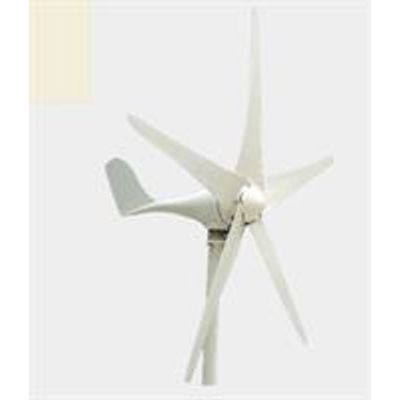

RexCo - Model RC-300 - Small Horizontal Wind Turbine
FromRexCo Technology
Low start up speed, 3 or 5 blades optional for different wind speed areas, high wind energy utilization. Amazingly quiet operation with minimal vibration. Easy installation, tube or flange connection optional. New art of precision injection molding blades with aerodynamic shape and structure, high efficiency. Body of casting aluminum alloy, with 2 bearings swivel makes it stronger. Patented AC PMG with special stator, effectively reduce torque, ensure excellent performance. Anti-rust & anti-corrosion, maintenance-free.
Most popular related searches
horizontal wind turbine
small wind turbine
wind turbine
small wind turbine system
hybrid wind and solar
wind turbine system
solar hybrid
wind and solar
wind energy
horizontal small wind turbine
- Rated Output 300W
- Peak Output 400W
- Rated Voltage 12/24V AC
- Start-up Wind Speed 2 m/s
- Cut-in Wind Speed 3m/s
- Rated Wind speed 10m/s
- Survival Max. wind 50m/s
- Number of Blades 3/5/6
- Rotor Diameter 1.35m
- Swept Area 1.32㎡
- Blade Material Nylon reinforced composite
- Generator Type Brushless 3-phase PMA with high performance Neodymium Magnets
- Generator case Casting aluminum alloy
- Controller Type PWM
- Over speed control Automatically adjust windward direction
- Net Weight 9kg
- Tower Connector Flange or Hoop
- Flange Size * DN20
- Tower Type * Guy Cable Tower
- Tower Size * 3mX2, 48-2.5mm
- Working Temp. range from -40°C to 60°C
- Product Life 15 years
- Warranty 1 years
- Applications wind solar hybrid streetlight, small wind turbine system etc.
- Measurement 68*28*19cm
- Gross Weight 10kg
