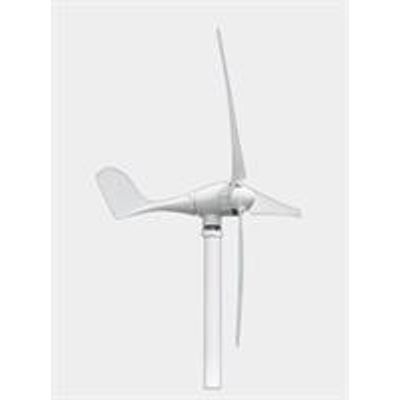

RexCo - Model RC-500 -Small Horizontal Wind Turbine

FromRexCo Technology

SHARE

Low start up speed, high wind energy utilization. Amazingly quiet operation with minimal vibration. Easy installation, tube or flange connection optional. New art of precision injection molding blades with aerodynamic shape and structure, high efficiency.. Body of casting aluminum alloy, with 2 bearings swivel makes it stronger.. Patented AC PMG with special stator, effectively reduce torque, ensure excellent performance.. Anti-rust & anti-corrosion, maintenance-free.

Most popular related searches

horizontal wind turbine

off-grid wind turbine

hybrid wind and solar

grid wind turbine

wind turbine system

Rated Output 500W
Peak Output 650W
Rated Voltage 12/24V AC
Start-up Wind Speed 2.5 m/s
Cut-in Wind Speed 3m/s
Rated Wind speed 10m/s
Survival Max. wind 45m/s
Number of Blades 3
Rotor Diameter 1.75m
Swept Area 2.27㎡
Blade Material Nylon reinforced composite
Generator Type Brushless 3-phase PMA with high performance Neodymium Magnets
Generator case Casting aluminum alloy
Controller Type PWM
Over speed control Automatically adjust windward direction
Net Weight 14kg
Tower Connector Flange or Hoop
Flange Size * DN25
Tower Type * Guy Cable Tower
Tower Size * 3mX2, 60-3mm
Working Temp. range from -40°C to 60°C
Product Life 15 years
Warranty 1 years
Applications wind solar hybrid streetlight, off-grid wind turbine system etc.
Measurement 93*37*26cm
Gross Weight 16kg
