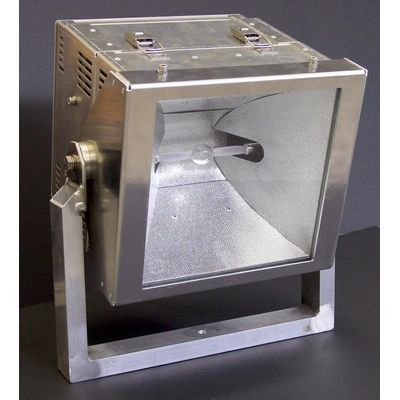

SolarConstant - Model MHG 1500/1200 - Small Luminaires for Solar Simulation Systems
SolarConstant 1500/1200 are typically used inside solar environmental walk-in and drive-in chambers for automotive applications, solar stress chambers for electronics, and for solar simulators for PV module testing. Atlas SolarConstant MHG 1500/1200 are specially designed small luminaires for solar simulation systems.
Most popular related searches
solar simulation equipment
solar simulation
photovoltaic module testing
custom solar
photovoltaic module
solar power modeling
solar photovoltaic module
power simulation
photovoltaic testing
solar module testing
- 1500 W / 1200 W MHG lamps
- Optical filters for outdoor and glass filtered indoor daylight solar conditions
- Wide, symmetric beam angle for high-uniformity solutions
- Modular design for customized systems of any size
- Lamp: MHG 1500/1200 W
- Spectrum: Global radiation similar to CIE 85 (Tab. 4)
- Outdoor Filter: UV cut-on approximately 290 nm
- Indoor Filter: UV cut-on approximately 320 nm
- Average lamp lifetime: 750 h / 1500 ignitions
- Dimensions (W x H x D): 350 mm x 330 mm x 290 mm
- Weight: 6 kg
Atlas has installed over 100 systems worldwide and is a leader in combining the technologies of testing with solar simulation. Below are examples of lower powered solar simulators:
