Flower TurbinesSmall Tulip Wind Turbine

SHARE

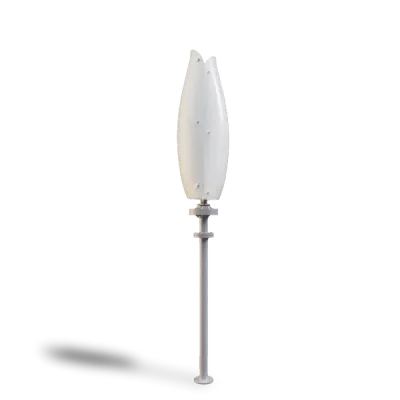

The Small Tulip Wind Turbine from Flower Turbines is designed for aesthetic appeal and operational silence. It can be configured for both grid-tied and off-grid systems, though multiple units are advised for more effective grid integration. A key innovation of this turbine is the patented Bouquet Effect, which enhances the performance of each individual turbine by boosting the output of neighboring units; clustering five turbines can yield up to 228% more energy than individual turbines. The unit's design prioritizes durability, capable of operating at both low and high wind speeds, with successful tests conducted at 120 mph. The turbine features a thermoplastic blade material, a cut-in wind speed of 1.57 mph, and an operational temperature range from 5°F to 175°F. With an overall life expectancy of 40 years, the turbine also boasts a compact form factor, measuring 545.592 mm (1.79 ft) in width and 1.396 m (4.58 ft) in height with extended pole options.

Most popular related searches
  • Width: 545.592 mm (1.79 ft.)
  • Height: 1.396 m (4.58 ft) with extended pole options
  • Blade Height: 1.149 m (3.77 ft)
  • Total Weight: ≈44.1lbs
  • Blade material: Thermoplastic
  • Cut-in Wind Speed: 1.57 mph (0.7 m/s)
  • Max Survival Wind Speed: 120.8 mph (54 m/s)
  • Operating Temperature Range: 5°F - 175°F
  • Design Life: 40 Years (Must be checked annually)
