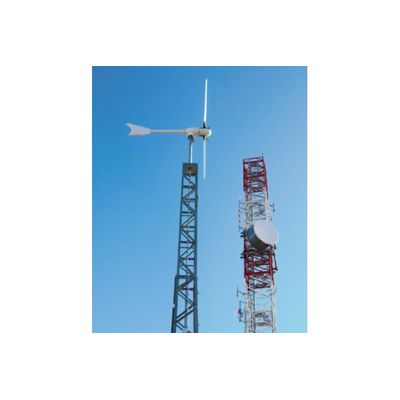

Ryse Energy - Model E-3 Hawt - Small Wind Turbine

• Telecoms
• Off-Grid
• Micro-Grid
• Pipeline/Security Monitoring
• Oil & Gas
• Cold Weather Environments
• Residential

The E-3 is capable of charging over 1 million smart phones each year.

GENERATOR

• Type : Permanent Magnet
• Maximum Power : 3 kW
• Rated Power : 1.9 kW

ROTOR

• Configuration : Horizontal Axis
• No. of Blades : 3
• Blade Material : Glass fibre
• Blade Length : 1.9 m
• Rotor Diameter : 3.8 m
• Swept Area : 11.34 m2
• Nominal Rotor Speed : 250 rpm
• Pitch/Yaw : Upwind passive system with steering rudder

WIND

• Cut-In Speed : 2 m/s
• Rated Wind Speed : 11 m/s
• Cut-Out Speed : 60 m/s
• Survival Speed : 70 m/s

WEIGHTS

• Nacelle/Rotor : 125 kg

TOWERS

• Lattice : 6 – 27 m
• Monopole : 6 – 27 m
• Tilt-Up : 6 – 27 m

DESIGN PARAMETERS :

• Turbine Design Class : IEC 61400-2 Class I
• Temperature Range : -20° to 50°C
• Lifespan & Servicing : 20 years, subject to regular maintenance

Blades
Glass fibre, with a high-density polyurethane core and a root reinforcement provides optimum strength and performance.

Variable Pitch
Patented system allows for passive control of the angle of attack of the blades. This innovative system has 2 speeds of action: the first 30 degrees absorb wind gusts and the next 15 degrees act to limit runaway during sustained high winds.

Generator
A new design which optimizes production by keeping all copper conductors within the magnetic field. Together with its 20 poles and N50 neodymium magnets, increases the generation of energy by 15% from the previous model.

Steering Rudder
A steel core embedded in high density polyurethane and coated with glass fibre helps to pitch the turbine into the wind, maximizing energy output.

Controller & Monitoring
Configurable controller electronics allows the turbine to adapt to the type of grid or batteries connected, providing maximum energy generation. Remote Monitoring ensures the wind turbine is operating at its peak performance at all times.
