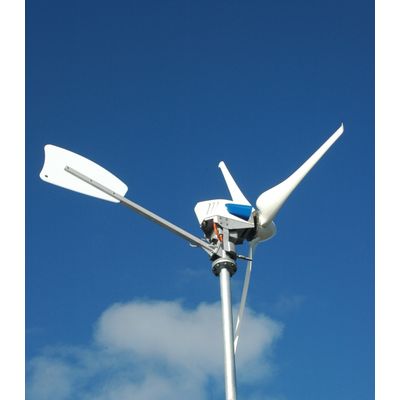

Braun - Model Antaris - 2.5 kW -Small Wind Turbine

FromBRAUN Windturbinen GmbH

SHARE

Permanent magnet rotor, brushless, gearless, maintenance-free. high efficiency due to extremely strong permanent magnets (NdFeBo permanent magnets, temperature resistant up to 150°). 3-phase alternating current. Separate rectifier direction of rotation arbitrary. Voltage 0-400 V. Feed-in starts at approx. 125 rpm. Power: 2,700 watts at 380 rpm and 330 VDC evenly rising performance curve. Weight: 30kg. Aluminum housing, surface cooling, foot mounting. Nacelle housing made of GRP.

Most popular related searches

small wind turbine

voltage monitoring

wind turbine rotor

current rectifier

rotor

Hub connection with aluminum flange and pressure plate
stainless steel screw connections with lock nuts
3 rotor blades made of glass fiber / carbon fiber laminate
Computer-aided aerodynamic profile
Noise minimization through winglets on the blade tips
approx. 3.00 m diameter
Single sheet weight: approx. 3.2kg
dynamically balanced
direction of rotation front "left"
Speed max 410 rpm.
GFK spinner cap
rotor color according to customer requirements

load-bearing element

Wind vane (weather-resistant HDPE natural white, slightly transparent)
Square stainless steel tube as a supporting element
all screw connections made of stainless steel and
fitted with lock nuts
Steel bracket as supporting element for generator, intended as
a plug connection with azimuth bearing, completely galvanized
patented helicopter safety device
Mast adapter with flange connection (tube 114.3mm)

storm protection

helicopter position
Voltage monitoring with braking resistor
generator short circuit

control cabinet

control with 3-phase voltage monitoring
1-phase mains parallel operation with FIMER / UNO 3.3 kW)
control electronics for turbine control
reverse polarity protected connections / plug connections
Monitoring of generator phases in turbine operation
emergency stop switch
reset switch with key (removable)
rectifier, analog display, ...
3.0 kW braking resistor
