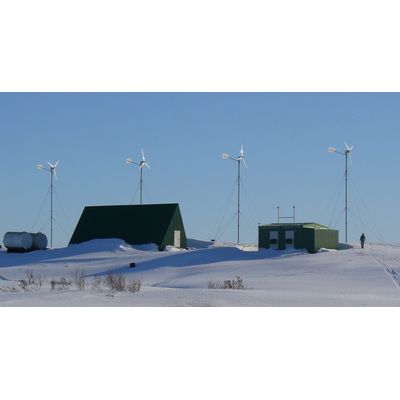

Braun - Model Antaris- 5.5 kW -Small Wind Turbine
Permanent magnet rotor, brushless, gearless, maintenance-free. High efficiency due to extremely strong permanent magnets (NdFeBo permanent magnets, temperature resistant up to 150°). Special ball bearings for the safe absorption of radial and axial forces.
Most popular related searches
small wind turbine
wind turbine
battery charger
voltage monitoring
wind turbine rotor
current rectifier
carbonization
generator
- axial forces
- 3-phase alternating current
- Separate rectifier
- direction of rotation arbitrary
- Voltage 0-1000 VDC
- Feed-in starts at approx. 100 rpm
- Power: 6000 watts at 380 rpm and 400 VDC
- evenly rising performance curve
- Weight: 57 kg
- aluminum housing, surface cooling, foot mounting
- nacelle housing made of GRP
- hub connection with aluminum flange and pressure plate
- stainless steel screw connections with lock nuts
- 3 carbon rotor blades
- Computer-aided aerodynamic profile, hand-laminated
- Noise minimization through optimal blade design
- approx. 4.00 m diameter; for light winds with 4.40 m or 5.30 m diameter up to max. 10.0 m mast height!
- Single sheet weight: approx. 7.0 kg
- dynamically and statically balanced
- direction of rotation front "left"
- Max. speed 350 rpm.
- GFK spinner cap
- rotor color according to customer requirements
- Wind vane (weather-resistant HDPE "natural white", slightly transparent)
- Square steel tube high-temperature galvanized as a load-bearing element
- all screw connections made of stainless steel and fitted with lock nuts
- Steel bracket as supporting element for generator, intended as a plug connection with azimuth plain bearing, completely galvanized
- patented helicopter safety device
- Mast adapter with flange connection (tube 114.3mm)
- helicopter position
- Voltage monitoring with braking resistor
- generator short circuit
- 3-phase monitoring of generator and grid
- 3-phase parallel operation with FIMER / TRIO 5.8 kW
optional 1-phase with FIMER / UNO 5.0 kW - control electronics for turbine control
- reverse polarity protected connections / plug connections
- Monitoring of generator phases in turbine operation
- emergency stop switch
- reset switch with key (removable)
- rectifier, display, ...
- 6.0 kW braking resistor
The Antaris is of course also available as a 48 VDC battery charger with an output of 4000 watts! The respective speed diagrams for battery charging / parallel mains operation are included in the offer.
