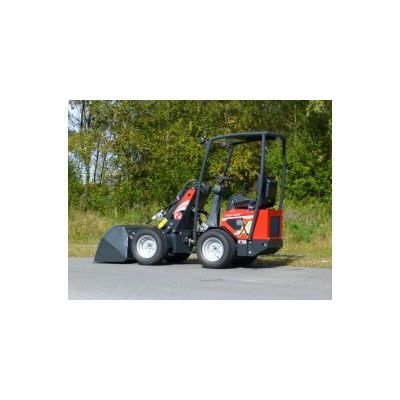

Norcar - Model 755xc - Smallest Mini Loader
FromNorcar Ab
Norcar`s smallest mini loader, the 755xc, is an adaptable and versatile machine for the private user, but also withstands tough professional jobs. With its tight turning radius and compact construction, it is very efficient in confined spaces. The 755xc has high traction in relation to its weight. The drivetrain is hydrostatic and is controlled by a direction pedal.
Most popular related searches
- Engine
- Make : Kubota
- Model : 722
- Cylinders : 3
- Fuel type : Diesel
- Cylinder volume cm3 : 719
- Cooling system : Fluid
- Power :
- SAE, gross power kW/hp : 12/20
- Max gross torque Nm : 46
- At engine speed r/min : 2600
- Max engine speed without load r/min : 3600
- Electrical system :
- Battery V-Ah : 12-53
- Generator A : 40
- Service volumes :
- Cooling system l : 5
- Engine oil l : 3,8
- Fuel tank l : 15
- Hydraulic tank l : 40
- Hydraulic system total volume l : 45
- Performance :
- Lifting power hydraulic kg : 1150
- Breakout force 50 cm kg : 900
- Tipping load, straight kg : 750
- Tipping load, articulated kg : 490
- Operating weight kg : 860
- Drive speed km/h : 0-13
- Pulling force kg : 950
- Hydraulic System :
- Working hydraulics l/min : 29
- System pressure bar : 200
- Drivetrain hydraulics l/min : 75
- Drivetrain max system pressure bar : 300
- Cycle Times :
- Raising boom s : 2,8
- Lowering boom s : 2,1
- Folding in bucket s : 1,7
- Tipping bucket s : 2,1
- Steering wheel rotations L/R rev : 3,5/4,7
- Tires :
- Dimension : 23x8,5-12IN
