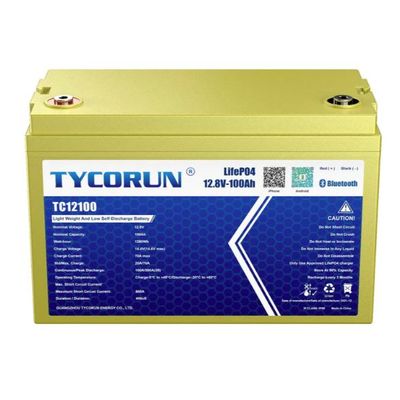

Tycorun - Model TCB12100 - Smart Bluetooth 12V 100Ah Lithium Deep Cycle Battery
This Smart Bluetooth 12V 100Ah lithium battery model includes 6 protections from BMS. They are over-charge, over-discharge, over current, over voltage, over temperature (Charging high temperature protection, Charging low temperature protection, Discharge high temperature protection, Discharge low temperature protection) and short circuit. Strong protection give you more safety and you can use it easily. And the BMS is easily accessible to guarantee a long life for the whole battery pack. With such strong protection, but our LFP battery is only 13 kgs, which in a smaller size.1/3 weight lighter than lead acid battery, you can be easy to move it to anywhere you want. 100A continue current provide you an amazing electricity power to most of your home electric appliance. You can be 100 percent satisfy with its performance. Never before has a LiFePO4 battery given such a crazy performance. It can be used for at least 10 years, and even more!
12V 100AH LITHIUM BATTERY FOR HOME SOLAR POWER SYSTEM
When you start to use pv solar power system, your house becomes more fashionable and modern than before. Presumably your neighbors have already cast envy in their eyes. And when the 12V 100Ah lithium battery appears, your home solar system will play a greater role. Excellent discharge current and strong energy storage capacity allow your battery to store more energy during the day. At night, you can even use this energy until the early morning of the next day.
12V 100AH LITHIUM BATTERY FOR RV
When you own an RV and you’re trying to have a long travel, you will definitely encounter a problem of insufficient power supply. Of course you can use gasoline or diesel to convert energy, but no one can refuse a more cost-effective and greener way, right? And all this is due to our 12V 100ah LiFePO4 battery. It can fully store the energy from the sun while you are driving. When night falls, it will all be dedicated to make you spend an unforgettable night. When the sun rises the next day, it can continue to store energy for you, day after day, year after year.
Nominal Voltage: 12.8V
Nominal Capacity: 100Ah@0.2C
Energy: 1280Wh
Internal Resistance: ≤40m?
Cycle Life: >4000 Cycles @ 0.2C Charge/Discharge at 100%DOD,End of Life 70% Capacity.
Months Self Discharge: ≤3.5% per month at 25 ?
Charge Voltage: 14.6±0.2V
Charge Mode ( CC/CV ): At 0 ? ~45 ? temperature, charged to 14.6V at a constant current of 0.2C5A, and
then,changed continuously with constant voltage of 14.6V until the current was not
more than 0.02C5A.
Charge Current: 20A
Max Charge Current: 100A
Discharge Current: 100A
Max Continuous Current: 150A
Max Pulse Current: 300A(<3S )
Disxcharge Cut-off Voltage: 10.8V
Charge Temperature: 0 ? to 45 ? (32 ? to 113 ? ) @60±25% Relative Humidity
Disxcharge Temperature: -20 ? to 60 ? (-4 ? to 140 ? ) @60±25% Relative Humidity
Storage Temperature: 0 ? to 45 ? (32 ? to 113 ? ) @60±25% Relative Humidity
Water Dust Resistance: IP65
Plastic Case: ABS
Dimension(L*W*H): 330*173*212mm
Weight: Approx. 12.5Kg
Terminal: M8
