Tongwei - Model TNC-M10 Bifacial -Smart Cell

Dimensions : 182.2mm*183.75mm±0.5mm, Φ256mm±0.5mm, TkVoltage: -0.26%/K.

Most popular related searches

Thickness : 130±20μm : TkCurrent: +0.046%/K
Front (-) : 16*0.03±0.02mm busbar (silver), 172 fingers, blue (dark blue) antireflective film (silicon nitride) : TkPower: -0.32%/K
Back (+) : 16*0.03±0.02mm busbar (silver), 190 fingers, blue (dark blue) antireflective film (silicon nitride) : Rsh≥35Ω, Irev2≤1A

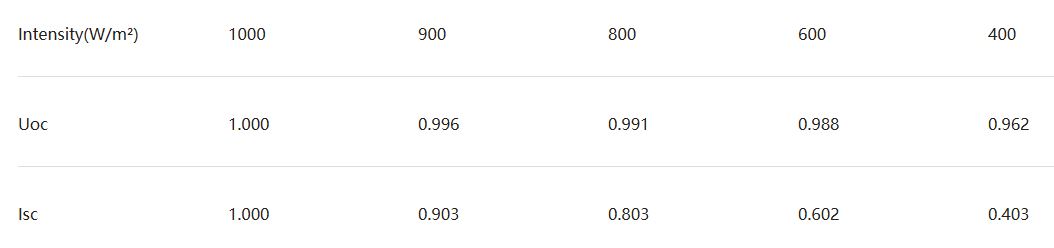

Technical Data and Design
