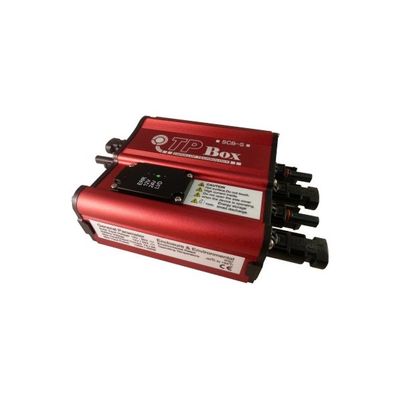

Tapollop - Model SCB-S1-250 -Smart Charger Box
Shorten charging time. Smart charging management. Designed for thin film PV module.
Most popular related searches
General Parameter
- Maximum Input Voltage: 80 Vdc
- MPPT Operating Range: 18~50 Vdc
- Maximum Input Current: 9A
- Rated Input DC Power: 250 (24V) /125 (12V)
- Battery Voltage: 12 / 24 (Automatic)
- Number Of Charge Stage: 3 stage
- Self consumption: 40 mA
- Maximum Effciency: 96%
Enclosure & Environmental
- Weight: 0.7kg
- Dimensions [ L*W*D]:190*125*55 mm
- Protection class:IP67 Outdoor Use
- Operating temperature:-10~55 ?
- Humidity:0~100 %
- Terminal size (single wire):2.5mm² / AWG14
- Cooling: Natural Convection
OUTPUT
Function & Feature
- Maximum power point tracker: Yes
- Automatic load disconnect: Yes (maximum load 7A)
- Over load current protection: Yes
- Over charge protection: Yes
