Lumin

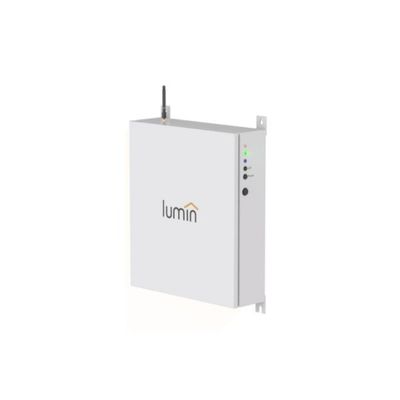

Lumin - Smart Electrical Panel
FromLumin
The Lumin Smart Panel transforms any standard electrical panel into an affordable smart panel capable of providing real-time energy consumption data and circuit-level control while boosting the performance of home microgrids through advanced load control and energy automation.
Most popular related searches
electrical panel
current transformer
electrical system
backup power
energy consumption
solar photovoltaic
energy management
energy storage
solar energy storage
solar photovoltaic energy
The affordable, easy to install smart panel solution
- Enables smarter whole home backup without the associated expense
- Eliminate the need for additional backed up loads subpanels
- Compatible with all makes and models of solar PV, energy storage, and backup generators
24/7 circuit monitoring, control, and scheduling
- Customizable circuit prioritization for better power backup experience
Automated energy management
- Protect against overload and keep your battery running Longer
Installation
- Type : Wall-Mount; Indoor or Outdoor
- Installer Qualification : Local Electrical Codes and Lumin Installer Certification
- Time Required :1.5-4 hours
- NEMA Rating :Type 3R
- Weight :12 kg (27 lb)
- Warranty :10-Year Limited
- Compatible Equipment : All Makes/Models/Brands of Electrical Panels and Breakers
Electrical system
- AC Voltage :120/240 VAC Split-Phase, 50-60 Hz
- Supply Breaker Rating : 15-20 A (non-GFCI)
- Breaker Types : Single Pole (1 Line) and Dual Pole (2 Lines)
- Current Transformers : 2 Split-Core 200A Included, Up to 2 Additional Available
Connectivity & Access
- Connection Options :Wi-Fi or Ethernet
- Applications :i0S, Android, and Web
- Data : 1-Second Granularity (Averaged from 16 kHz)
- Load Controls : Manually/Directly, Automated Schedules, and Automated
- Full Tech Specs
