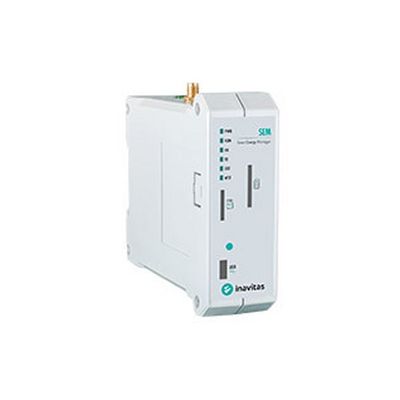

inavitas - Model SEM - Smart Energy Manager
SEM is a compact and highly capable monitoring and control device for commercial, industrial and utility based energy management applications. It supports most of the common industrial communication protocols ( Modbus, IEC104, IEC62056 etc.) as well as those being used for IoT applications (REST, MQTT, CoAP etc.). Owing to its embedded click-on communication board, you can choose any type of media over GSM, Wi-fi, Ethernet, Zigbee or Lora. SEM’s power measurement feature provides monitoring of two three-phase circuits simultaneously with a sampling rate of 3.2kHz. Besides, it has an SD Card option up to 32GB to restore data even if there is a loss of communication. Its embedded and expandable digital inputs and outputs make it very easy to have more information from other communicable devices
opening the door to a world of connectivity and control.
Device Specification
- Supply Voltage Range : 85 – 264 VAC
- Nominal Supply Voltage : 230VAC
- CPU : ARM Cortex-M4 32 Bit 96 Mhz
- Flash : 1 Mb
- Ram : 320 Kb
- Watchdog Timer : System Reset / 5 sec
- Power Consumption : 2.3W @ 230 VAC
- Real Time Clock : Available
- Configuration : Web Server Interface / MCU-CX Configurator
Wi-Fi Specifications
- Wi-Fi Protocols : 802.11 b/g/n
- Frequency Range : 2.4 GHz ~ 2.5 GHz (2400M ~ 2483.5M)
- Wi-Fi Antenna : Extenal Antenna On board SMA Connector
- RF Certification : SRRC, FCC, CE (RED), IC, NCC, KCC, TELEC (MIC)
- Wi-Fi Certification : Wi-Fi Alliance
- Wi-Fi Mode : Station / SoftAP / SoftAP + Station
- Security : WPA / WPA2
- Network Protocols : IPv4, TCP / UDP / HTTP / FTP
GSM Specifications
- Embedded GSM : Yes (Optional)
- Operating Frequencies : Standard (Quad Band GSM module 850/900/1800/1900 MHz)
- Number of Connections : 6
- GSM Antenna : On Board SMA Connector
- Ping Blocking : yes
- Stop Bit and Parity Bit Adjustment : yes
- Identification With Phone Number : yes
- Dispatch of warnings and alarms from software as text message to administrators possible : yes
- Identification With Phone Number : optional
Communication Specifications
- Communication Protocols : Modbus-RTU (Slave), IEC60870-5-104, IEC62056-21
- Serial Interfaces : RS-485, Micro USB C Type 2.0
- Serial Communication Speed : 1200bps – 115200bps
- USB Data Transfer Speed : 480 Mbit/s
Power Measurement Specifications
- Voltage Measurement Range : 0 – 275 VAC,RMS (L – N), 0 – 500 VAC,RMS (L – L)
- Curren Measurement Range : 1 – 4000 AAC,RMS (Split Type)
- Frequency : 50 / 60 Hz ±5%
- Voltage Channels : 3P + N (3 Phase Voltage and Neutral)
- Current Channels : 2 x 3P (Either 3 Phases or 6 Single Phases)
- Sampling Frequency : 128 Sample / Cycle
- Voltage Accuracy : ±0,5%
- Current Accuracy : ±0,5%
- Active Energy Accuracy : IEC 62053-22 Class 0.5S
- Accuracy Class : IEC 61000-4-30 Class S
- Basic Measurements : V, I, f, P, Q, S / kWh, kVArh, kVAh (Four Quadrant) / PF, cos φ / THD-I, TDD-I, THD-U, THD-V / K-Factor / Ih(1-13) – Vh(1-13)
- Detailed Measurements : Outage / Maximum Voltage, Current and Power Demand
- Programmable Alarms : Under Voltage / Over Voltage / Low Current / High Current
Environment Conditions
- Standards : IEC 61326-1, EN 301489-1, IEC 61010-1, EN 60950-1
- Operating Temperature : -25°C / +70°C
- Operating Humidty : 25% – 95% RH
- Protection Class : IP20
Mechanical Specifications
- Device Dimensions (W x H x D) : 35mm x 100mm x 115mm
- Weight : 190gr
