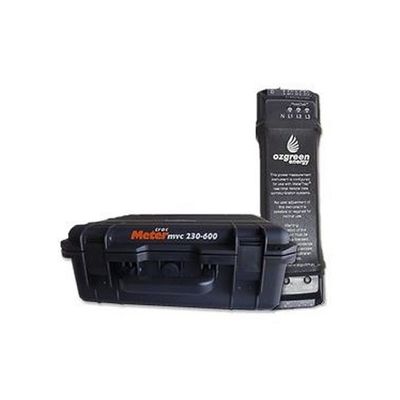

MeterTrac - Model MVC230-600 -Smart Multi-Channel Power Meters
MeterTrac constantly streams the results of over 64,000 measurements, calculations and analytic algorithms automatically updated at 5 minute intervals. All MeterTrac users need to do is to simply open up an interactive dynamic dashboard to view the live data on the web, almost anywhere.
MeterTrac captures kWh/kW energy and demand data on three-phase or single-phase circuit installations.
Data updates occur every 0.5 second with accuracy better than 1% (depending on CT used).
Flexibility, size, and ease-of-use make them ideal tools for gathering detailed consumption information in commercial, industrial, government, and retail environments.
MeterTrac MVC230-600 in the PowerScout format makes over 50 total
electrical measurements which are derived from the voltage and current inputs. Electrical load diagnostic parameters such as power factor (both Apparent and Displacement) and line frequency are captured in addition to energy and demand values.
MeterTrac MVC230-600 series uses integrated industry standard power meters with direct with direct connection to each phase of the voltage.
Fool-Proof Installation
MeterTrac MVC230-600 can accommodate service voltages ranging from 80-600V (phase to phase).Simple installation is accomplished by connecting the colour coded voltage leads and clearly labelled CTs.
Patented PhaseChek circuitry includes a 3 LED indicator display that confirms proper CT-to-phase installation. The meter automatically adjusts for CT orientation reducing set-up time and installation errors.
Multi-Circuit or Branch Circuit Monitoring
The MeterTrac MVC230-600 is a versatile CT instrument.
It is supplied with two sets of clamp-on CTs covering a range from 1 - 1000 amps.
Internally-shunted split-core CTs and Rogowski CTs are available as add-on accessories.
MVC230-600 works in measuring locations with good mobile telephone reception. For areas where mobile telephone communications signals cannot be established we can offer cost effective satellite communication options.
Real-time Power Diagnostics
The cloud-based MeterTrac utility system allows you to easily check the connected CTs and readings.
MeterTrac is the quick and easy way to:
- Verify meter installation
- Check real time values before leaving the job site
- Read real-time streaming load and consumption data
"Plug and Play" Communication
- The MeterTrac MVC230-600 can monitor single-phase or three-phase loads.
- A continuous data communications interface to the power meter is automatically made through the MVC230- 600 Communicator when it is plugged in.
- MVC230-600 uses Modbus protocol for sending commands and retrieving data in real-time using proprietary back-haul data systems to secure
- off-site servers where streaming real-time data is processed and archived.
- The MeterTrac proprietary "Active Data" cloud utility allows users to easily view and compare all stored data using a cloud-served MeterTrac interactive visual data displays to check and compare meter readings from anywhere at any time using the web for access .
MeterTrac MVC230-600V provides breakthrough technology in data storage and crunching power which can transform mountains of energy data into a meaningful visual presentations and send out alarm in milliseconds.
This new approach to instantaneous visual power tracking and predictive maintenance can help save your business time and money.real-time information
- No more wasted time visiting sites to recover data loggers? No more endless spreadsheet calculations
- No more lost time trying to interpret power data
- See what really matters ….almost instantly
- Take action in minutes or hours….not days, weeks or months
- Slash maintenance costs? Save wasted travel time and costs
- Use “real time power information” to improve operating costs
- Extend plant and equipment life
- Reduce operating and capital expenditure
- Circuit sub-metering
- Phase load balancing
- Load demand profiling
- Plant and equipment investigations
- Checking HVAC plant operations
- Industrial
