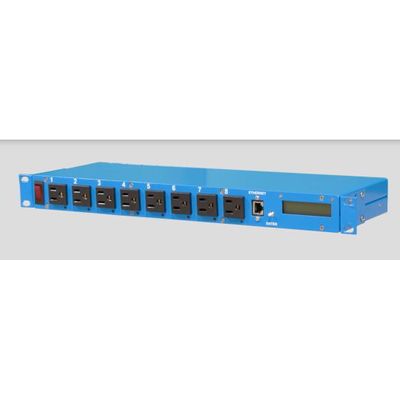

Multilink - Model 018-041-10 - Smart Tracker
The Smart Tracker Remote Power Manager is a hardened, programmable outlet strip that enables power and control of up to 8 devices remotely. Each Smart Tracker is Ethernet ready with an embedded webpage that gives users the ability to see vital information about the unit and to switch power on or off for all outlets, relays, and inputs. The Smart Tracker's Ethernet connectivity also allows users to see environmental details about the unit like temperature, voltage and when the enclosure door has been opened or if a standby generator is ready in real time. It also allows users to perform actions on the unit with the click of a button, such as automating tasks, resetting power without having to send a technician to the site or remote updating the firmware. A built-in scheduler can be configured to periodically reduce power consumption or restart devices, and the integrated Ping feature can automatically reset one or more outlets that are powering local network equipment to regain connectivity. If something unwanted does happen, the unit directly reports alarms to conflict monitors. The embedded webpage and the unit's two-line LCD display show operating and environmental parameters in real time, including analog DC voltage inputs that measure the battery backup system's voltage. GPS tracking pinpoints the location of each Smart Tracker deployed with Google Maps, and the unit logs each event that takes place and can send email or SNMP alerts for outlet state change or when alarm thresholds are exceeded. Boasting unparalleled transparency and remote accessiblity features, the Smart Tracker Remote Power Manager is the ideal solution for remote equipment deployment in every market.
Connectivity
The Smart Tracker's ethernet capabilities allow it to provide up-to-date operating paremeters including voltage, temperature, humidity, device time and more all on a user friendly webpage.
Remote Access
Through the on board webpage the user can reset a remote device, eliminating the need for manual resetting. Users also have the ability to schedule devices on each outlet to turn on/off at specific time intervals.
GPS Tracking
Through GPS tracking you will be able to know the exact location of the Smart Tracker deployed in your system.
Event Log
The Smart Tracker can provide event logs for each event that takes place on its outlets, digital inputs, or outputs. This allows for easy tracking and reporting on equipment usage.
General Specifications
- User Input : Pushbutton for Specific Actions
- Event Log : Stores Thousands of Events
- LEDs : Indicators for Active Outlets, Relays, and Digital Inputs
- Automation : Scheduled Events and Actions
- No. Outlets : 8 Individually Controlled Outlets
- LCD : Dual Line 2x20 Backlit
- Remote Updates : Firmware and Unit Configuration
- System Clock : NTP/RTC/Manual Update
- Outlet Type : NEMA 5-15R, 15A/125 VAC, 60Hz
- Embedded Webpage : Password Protected User Interface
Mechanical Specifications
- Color : Black/Blue
- Relay and Input Connections : Screw Terminal Plugs for 12-22AWG Wire
- Dimensions : 1.7”H x 7.0”D x 19”W (43mm x 482mm x 178mm)
- Weight : 5 Lbs.(2.26 Kg)
- Mounting : 1RU Rack Mounting w/ Adjustable Rack Mount Brackets or Shelf Mount
Digital Input Specifications
- Analog Input Voltage (DC) : 0-60VDC
- No. Digital Inputs : 8 Individual Inputs (2 Contacts per Input)
- Temperature Sensor : Embedded
- Digital Input Voltage : 5VDC, 10mA Max., Opto-isolated Inputs
- Humidity Sensor : Embedded
- Analog Voltage (DC) Input : 2 Independent DC Measurement Inputs
Output Relay Specifications
- Relay Current Capacity : 10 Amps, Each
- No. Output Relays : 8 Individual Output Relays
- Relay Switching Voltage : 250VAC, 125VDC MAX
AC Input Specifications
- Current Capacity : 15A
- Frequency : 60Hz ±3Hz
- Power Cord : Pluggable 5-15P, C13 15A/125VAC
- Voltage Range : 85-154VAC; 120VAC Nominal
- Circuit Breaker Rating : 15A
Environmental Specifications
- Operating Temperature : -37°C to +74°C (-34°F to 165°F)
- Operating Humidity : 5-95% Non-condensing
- Storage Temperature : -45°C to 85°C (-49°F to 185°F)
Communication Specifications
- Notification Type : SNMP Traps/Email Notification
- Network Interface : 10/100/1000 BASE-T Ethernet Port, RJ45 Connection, Auto MDI-x
- Network Protocols : NTCIP/TCP/IP/HTTP/SNMP/SNTP/UDP
- IP Addressing : DCHP and Static IP Addressing
Safety Standard Specifications
- Standards : NEMA TS2-2016 v03.07
