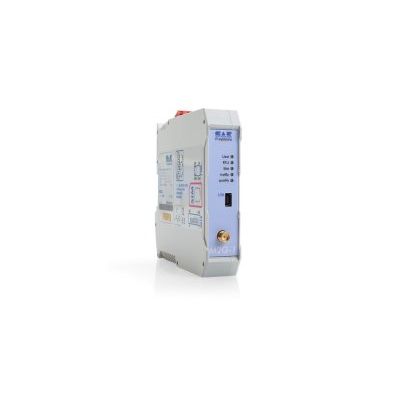

SAE-IT - Model M2G-1 -SMS Tele Alarm for Secure Communication
The M2G-1 allows intelligent communication infrastructures to be using GPRS/EDGE. It can also be used as a GSM dial-up modem with SMS tele alarm from the substation. It is connected to any 2G-mobile radio network with a standard SIM card.t communication infrastructures to be using GPRS/EDGE. It can also be used as a GSM dial-up modem with SMS remote alerts from the substation. It is connected to any mobile radio network with a standard SIM card.
Although the modem does not have its own VPN encryption, data transmission conforming to the BDEW white paper (end-to-end encryption) can be realised in combination with SAE telecontrol systems of the series5+ product family.
M2G-1 is a substitude of GPRS-1 with enhanced diagnostic capabilities.
- Intelligent secondary unit substation
- Renewable energy plants
- Media and infrastructure systems in pipelines
Mobile radio
- Quadband wireless module 850/900/1800/1900 MHz
- SIM cards with 3 V and 1.8 V, data activation
- GPRS multi-slot class 12, full PBCCH support, class B, coding scheme 1-4
- EGPRS/EDGE multi-slot class 12, class B, modulation and coding scheme MCS 1-9
- CSD V.110, RLP, 2.4 / 4.8 / 9.6 / 14.4 kBit/s, USSD
- SMS point-to-point MT and MO, text and PDU mode
- Transmitter power 1 W with GSM 1800/1900
- Transmitter power 2 W with EGSM 850/900
Interfaces
- EIA/RS-232/V.24 up to 115 kbit/s
- RJ-45 according to ETSI EN 300 392-5 DÜE
- Antenna SMA (f)
- USB-device diagnostic interface
- Wide area supply 24 up to 60 V DC ± 20%, max. 4,5 W
Protocols and communication modes
- IEC 60870-5-101 for dial-up links
- IEC 60870-5-104 GPRS/EDGE with PPP protocol (TCP/IP)
