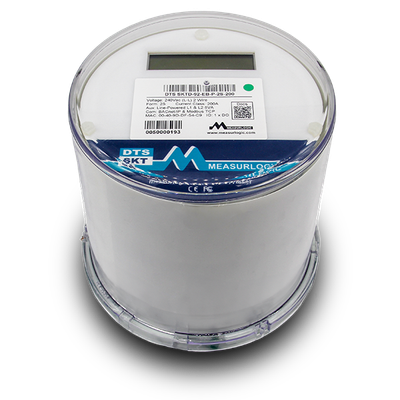

Measurlogic - Model DTS SKT Series - Socket Submeters for Energy Efficiency
Use the DTS SKTD Class 0.5 “Smart” submeters to replace existing electro-mechanical energy consumption metering for improved efficiency, reliability and power quality. These replacement socket submeters support most accepted protocols, including embedded ethernet connectivity for Modbus/TCP, BACnet/IP, SNMP or DNP 3.0 as well as communication via an RS-485 connection, supporting Modbus RTU and BACnet MS/TP. They easily integrate with Building Automation Systems and Energy Monitoring Software.
- ANSI C12.20 – Revenue Grade
- 208-240Vac L-L single phase or 208-480Vac L-L 3 phase
- BTL Listed
- Ethernet, RS-485 or Pulse (kWh) connectivity
- RS-485: Modbus RTU and BACnet MS/TP loaded as standard
- Ethernet: Modbus TCP and BACnet/IP
- 200A internal CTs (optional: 320A) or 5A CT inputs
- Standard form factors: 2S, 16S and 9S (All others on request)
- Bi-directional for renewable systems (NET metering)
- Integral 2 line LCD display
- Optional Digital Output
- Made in USA
- The specifications above are model dependent.
The selection fields below are in the same order as the “Model Number Builder” on page 2 of the DTS SKTD datasheet (956.6 Kb) [PDF]
The DTS SKTD is certified ANSI C12.20 – Revenue Grade, the highest accuracy of any meter. The DTS SKTD is available with optional kWh (Energy) pulse output. The meter includes a 2 line Integral LCD display. For remote configurability, all the DTS Series of meters come with our free DTS Config software platform where you can conveniently choose from over 200 parameters at the frequency you require. Also, if in the future, you decide to integrate renewable energy sources, the DTS Series will conveniently operate as Bi-directional NET meters. The DTS SKTD are designed and manufactured in the USA and comply with the Buy American Provisions of ARRA Section 1605.
Why Energy Socket Replacement?
- To upgrade existing electro-mechanical meters
- Access to smart meter technology
- Remote access to meter data
- Multiple form factors available (2S, 9S and 16S are the most common)
- “Smart” submeter replacement for existing electro-mechanical meters
- Class 0.5 Energy Meter** (ANSI C12.20) – “Revenue grade”
- Bi-directional for renewable systems (NET metering)
- Socket Form Factors
2S, 9S and 16S are the most common - Other form factors available (please contact us)
- Embedded Ethernet connectivity – Modbus/TCP, BACnet/IP, SNMP or DNP 3.0
- RS-485 connectivity – Modbus RTU or BACnet MS/TP
- Digital output (N.O. solid state relay) – optional
- Integral 2 line LCD display (DTS SKTD)
- User configurable using DTS Config software
- User-definable Modbus register area
- Compatible with PowerStudio Energy management and control software suite
- Integrates seamlessly with AcquiSuite data acquisition server
- SunSpec Alliance compatible
- Designed and Manufactured in the USA. Complies with Buy American Provisions of ARRA Section 1605
Popular Form Factors
- 2S (Single phase – typical Residential form factor) can have either 100A or 200A internal CT(s)
- 9S (3 phase – Commercial & Industrial) has external CTs, over 200A
- 16S (3 phase – Commercial & Industrial) can be provided with 100A or 200A internal CTs
