Auroras Downlight Features:
SAA Approved Downlight kits, retrofits. IC-F Standard Downlight

Sales@auroraslighting.com
Skype:Cnwayne521
Whatsapp:86-18023075361

★The SMD LED downlight is an ideal choice for commercial and home lighting, with high lumens and CRI.
★Adopting Samsung SMD5630 with CRI 83 as the light source, the lighting fixture output a high performance.
★ Auroras offer 2 inch, 2.5 inch, 3 inch, 4 inch, 5 inch, 6 inch, 8 inch, replacing the traditional CFL downlight directly.
★The SMD LED downlight comes with 90° wide beam angle.
★For matching with differentceiling colour, Auroras provide satin white, brushed nickel, and silver surface finish.
★Our indoor LED lighting fixture adopts frosted anti-glare PMMA lens to offer soft light and uniform lighting colour.
★This SMD LED downlight is compatible with 90% dimmers on market. like Clipal,Lutron,Legrand,etc.

SAA Approved LED Downlight advantage：
★High effects energy-saving.
★Longlifespan up to 30,000hrs~50,000hrs.
★Environment friend,no UV and radition inside.
★Green material without mercury,easy for recycle.
★DC drive without flicker,excellent for reading ,family,office
★Compared with halogen lamp,5W downlight LED generate low heat ,high effects up to 90% energy for lighting.

Download Price List Now

IP65 Waterproof Standard
5W 7W SAA Approved Down Light Retrofit / 10W 12W SAA IC Approved Downlight Waterproof IP65

Order Code	CCT	Power	Lumens	Dimension	IP Rate	CRI	LED Type	Dimmable
ASD07S3K	3000K	7W	>570lm	Over all:90mm Height: 45mm Cut out: 75mm	IP65	>83	Samsung SMD5630	Triac Dim 5%~100%
ASD07S4K	4000K	7W	>580lm
ASD07S5K	5000K	7W	>590lm
ASD07S6K	6000K	7W	>600lm

ASD010S3K	3000K	10W	>810lm	Over all: 108mm Height: 45mm Cut out: 95mm	IP65	>83	Samsung SMD5630	Triac Dim 5%~100%
ASD010S4K	4000K	10W	>820lm
ASD010S5K	5000K	10W	>830lm
ASD010S6K	6000K	10W	>840lm

ASD012S3K	3000K	12W	>920lm	Over all: 108mm Height: 45mm Cut out: 95mm	IP65	>83	Samsung SMD5630	Triac Dim 5%~100%
ASD012S4K	4000K	12W	>930lm
ASD012S5K	5000K	12W	>940lm
ASD012S6K	6000K	12W	>950lm
Square Cover is available for IP65 7W 10W 12W 13W mode

Ultra Slim 5W 7W SAA Approved Downlight Retrofit

Order Code	CCT	Power	Lumens	Dimension	IP Rate	CRI	LED Type	Dimmable
ASD07A3K	3000K	7W	>550lm	Over all:85mm Height: 40mm Cut out: 75mm	IP44	>83	Samsung SMD5630	Triac Dim 5%~100%
ASD07A4K	4000K	7W	>560lm
ASD07A5K	5000K	7W	>570lm
ASD07A6K	6000K	7W	>580lm

ASD07B3K	3000K	7W	>550lm	Over all:85mm Height: 40mm Cut out: 75mm	IP44	>83	Samsung SMD5630	Triac Dim 5%~100%
ASD07B4K	4000K	7W	>560lm
ASD07B5K	5000K	7W	>570lm
ASD07B6K	6000K	7W	>580lm

9W 10W Australia SAA Approved LED Down Light

Order Code	CCT	Power	Lumens	Dimension	IP Rate	CRI	LED Type	Dimmable
ASD10A3K	3000K	10W	>780lm	Over all:108mm Height: 45mm Cut out: 95mm	IP44	>83	Samsung SMD5630	Triac Dim 5%~100%
ASD10A4K	4000K	10W	>790lm
ASD10A5K	5000K	10W	>800lm
ASD10A6K	6000K	10W	>810lm

ASD10B3K	3000K	10W	>780lm	Over all: 108mm Height: 33mm Cut out: 95mm	IP44	>83	Samsung SMD5630	Triac Dim 5%~100%
ASD10B4K	4000K	10W	>790lm
ASD10B5K	5000K	10W	>800lm
ASD10B6K	6000K	10W	>810lm

SAA Approved 12W 13W LED Ceiling / Downlight Kits

Order Code	CCT	Power	Lumens	Dimension	IP Rate	CRI	LED Type	Dimmable
ASD13A3K	3000K	13W	>960lm	Over all:125mm Height: 45mm Cut out: 110mm	IP44	>83	Samsung SMD5630	Triac Dim 5%~100%
ASD13A4K	4000K	13W	>970lm
ASD13A5K	5000K	13W	>980lm
ASD13A6K	6000K	13W	>990lm

ASD13B3K	3000K	13W	>960lm	Over all: 108mm Height: 33mm Cut out: 95mm	IP44	>83	Samsung SMD5630	Triac Dim 5%~100%
ASD13B4K	4000K	13W	>970lm
ASD13B5K	5000K	13W	>980lm
ASD13B6K	6000K	13W	>990lm

Ultra Slim LED Downlight 18W / 15W Sumsang LED inside.

Order Code	CCT	Power	Lumens	Dimension	IP Rate	CRI	LED Type	Dimmable
ASD15A3K	3000K	15W	>1180lm	Over all:168mm Height: 40mm Cut out: 150mm	IP44	>83	Samsung SMD5630	Triac Dim 5%~100%
ASD15A4K	4000K	15W	>1190lm
ASD15A5K	5000K	15W	>1200lm
ASD15A6K	6000K	15W	>1210lm

Ultra Slim LED Down Light 20W / 25W Sumsang LED inside.

Order Code	CCT	Power	Lumens	Dimension	IP Rate	CRI	LED Type	Dimmable
ASD20A3K	3000K	20W	>1550lm	Over all:180mm Height: 50mm Cut out: 160mm	IP44	>83	Samsung SMD5630	Triac Dim 5%~100%
ASD20A4K	4000K	20W	>1570lm
ASD20A5K	5000K	20W	>1590lm
ASD20A6K	6000K	20W	>1610lm

Ultra Slim 20W 25W 30W Downlight Sumsang LED inside.

Order Code	CCT	Power	Lumens	Dimension	IP Rate	CRI	LED Type	Dimmable
ASD25A3K	3000K	25W	>960lm	Over all:225mm Height: 50mm Cut out:205mm	IP44	>83	Samsung SMD5630	Triac Dim 5%~100%
ASD25A4K	4000K	25W	>970lm
ASD25A5K	5000K	25W	>980lm
ASD25A6K	6000K	25W	>990lm

ASD30A3K	3000K	30W	>1920lm	Over all:225mm Height: 50mm Cut out:205mm	IP44	>83	Samsung SMD5630	Triac Dim 5%~100%
ASD30A4K	4000K	30W	>1940lm
ASD30A5K	5000K	30W	>1960lm
ASD30A6K	6000K	30W	>1980lm

Service:
1.Your inquiry related to our products or prices will be replied within 12 hours.
2.We offer OEM services. Can print your own logo on product, customized box packing and others.
3.Protection of your sales area, ideas of design and all your private information.
4.Delivery Time: 2-4Working days for sample.8-15 Working days for big order.
5.We have very experienced R&D engineers
6.Continually innovation, honest business, and first-class service is our philosophy.

Hot tag： 12W Australia led down light

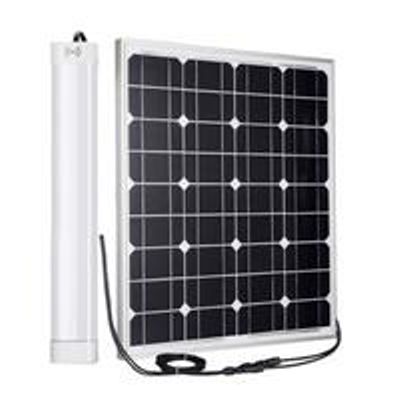

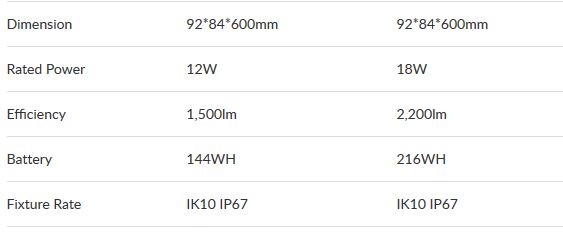

APOLLO - Model AI-X1500/X2200 -Solar Batten Light 12W 18W
