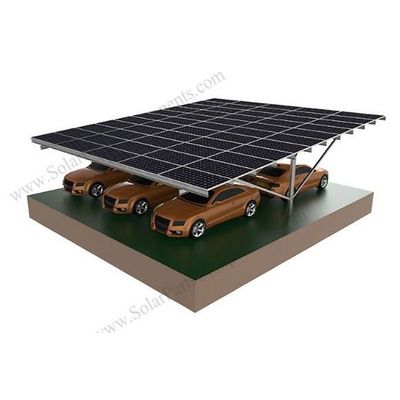

SPC - Model CPC-H11-Y -Solar Carport Mounting System

Features of this Galvanized Steel Carport PV Module racking system:

• Can be applicated for both home or business carport installation;
• Open field with pile installed;
• Galvanized steel and good quality fasteners for whole structure;
• 5°~20° tilt angle can be fixed for this carbon steel carport frame;
• Quick installation for pre-assembly packing;
• Utilize idle spaces for energy generation;
• Charging station can be optional;

Parts and Components for this carbon steel Q235 carport racking system SPC-CPC-H11-Y:

• Hop-dipped galvanized steel;
• Rail connectors;
• L connection;
• mid / end clamps;
• column supports

Installation steps for this solar carport mounting system SPC-CPC-H11-Y:

1. Pile support as per manual book guidance;
2. Fix upper supports on down supports;
3. Mounting Q235 steel rails on support;
4. Put solar panels on rails and fix with mid / end clamps;

Welcome to consult our engineer expert for this galvanized steel solar carport SPC-CPC-H11-Y.

• Solar Mounting Systems – Galvanized Steel Carport
• Item type : Solar Mounts for car, vehicle
• Type : SPC-CPC-H11-Y
• Installation Site : Residential / commercial open places
• Profile Material : Carbon Steel
• Fasten Parts: Steel / Aluminum T Sliding Nut
• Color: Galvanized
• Wind Load : 60 m / s
• Snow Load : 1.4 KN / M2
• PV Modules : Framed, Frameless
• Module Orientation : Portrait and Landscape
• Standards :
• AS/NZS 1170
• DIN 1055
• GB50009-2012
• IBC2009
• TUV
• JIS C 8955: 2011
• International   Building Code IBC 2009
• California   Building Code CBC 2010
• Warranty : 10 years
• Designed Lifespan : 25 years
• Packing Details:
• Inner : Bubble bag+inner box+Carton
• Outer : Wooden Box, Steel Pallet, MDF, etc
