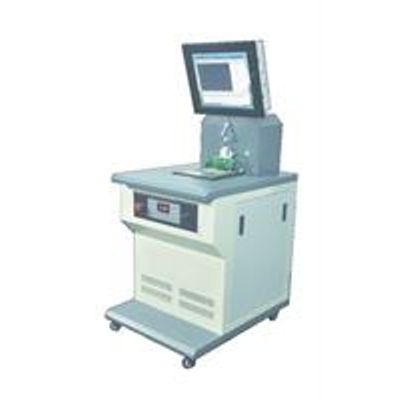

Solar Sunrise - Model SCT-D3A -Solar Cell Tester
Electric performance test and record for Mono-Si or Poly-Si solar cells.
Most popular related searches
- Class A AM1.5G irradiation spectrum;
- Pneumatic bumper pin-contact, Pin-contact, on the sunny side and planer contact on the rear side;
- 4-strand testing mode and 14-byte 4-channel high-speed synchronous acquisition;
- 10 preferences on display and testing data illustration in terms of sheets and curves;
- Irradiance and temperature self compensating;
- Vocal test reporting and screen counter for flashes;
- 24/7 tools uptime and 300,000 flashes for life-time of Xenon lamp;
- Integrated design;
- Human-centered design;
- Function of measuring reverse current;
- Easy operation and observation;
- Footprint economy;
- Items : SCT-D3A
- Lamp Spectrum : IEC60904-9AM1.5[ClassA]
- Light Intensity : 700-1200 W/M2 continuous adjustable
- Non-uniformity of Intensity : <2% [Class A]
- Temporal Instability : STI<0.5%[ClassA]
- Temporal Instability : LTI<2% [Class A]
- Consistency of Testing : <0.5%
- Pulse Width of Single Flash : 10ms
- Effective Testing Area : 200mm*200mm
- Measuring Voltage : 0V-0.8V(resolution1mV)
- Measuring Current : 0mA-20A(resolution 1mA)
- Tested Electric Performances : Isc, Voc, Pmax, Vm, Im, FF, EFF, Temp, Rs, Rsh, Ir
- Power Supply : AC220V/50HZ/2KVA
- Air Supply : 0.5-0.8Mpa
