Elsol - Model EL-AT Series -Solar Collectors
Our solar collectors are manufactured of noble materials, according to a proprietary design. Our collectors offer an unmatched level of efficiency and provide a significantly long life.

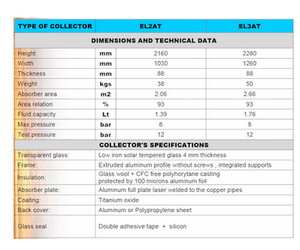

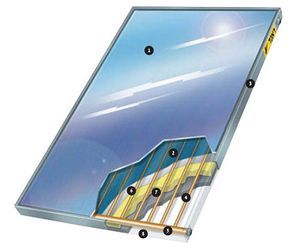

Collector Diagrham and Data Sheet
- Transparent cover - 4 mm low iron tempered glass with a minimum transmittance of 91.5%.
- Absorber Plate-EL-AT SERIES: 0.5 mm full plate aluminum absorber coated in high efficiency blue sputter Titanium Oxide coating welded by laser to the copper risers.
- RAL-S and R-S Series: 0.2 cooper strips welded ultrasonically to the copper risers coated in selective chrome coating.
- RAL-P and R-P Series: 0.2 mm copper strips welded ultrasonically to copper risers coated in special solar paint.
- Frame - Collector`s frame is available in.
- Extruded Aluminum, Anodize, or powder paint in standard grey color. Special color according customer requirements availble.
- Galvanized white prepainted steel.
- Copper risers -
- EL-AT series: 8 mm copper tubes
- R-S, RAL-S, RAL-P, R-P: 3/8",1/2" copper tubes.
- Manifold -EL-AT series: 22 mm copper tube
- R-S, R-P, RAL-S, RAL-P: 7/8" 11/8" copper tubes welded to 3/4" BSP female thread adaptors.
- Aluminum foil- 100 microns Aluminum foil to protect polyurethane casting.
- Insulation - CFC Halogen free polyurethane or high density rock wool boards.
- EL-AT series: unique mixture of glass wool insulation bonded together with CFC Free high density polyhorytane casting
- Back plate - P.V.C /Polypropylene or Aluminum sheet.
All collectors undergo test pressure of 12 bars whereas permitted working pressure is 8 bars
Our flat plate collector`s copper piping is welded using laser technic. to an Aluminum absorber coated with Titanium Oxide coating with solar absorptance of 95%-97% and emittance of 5% - 7% which ensures high efficiency of the solar collector and effective heat conductivity.
The collector`s case is made of extruded aluminum coated in powder paint or anodized .the frame has a very easy and safe fixing fixture using nuts of M8 rivets.
Our unique insulation consist of a mixture of an high density CFC Polyhorytane casting together with glass wool, this insulation ensures the low thermal losses of the collector. The insulation is protected by a 100 microns aluminum foil.
Collector`s casing back plate is made of aluminum or PVC
The collector`s glass is a solar low iron tempered glass with solar transmittance or more than 91% .
Our collectors were tested and approved by certified laboratories such as CENER and ITW in Europe which have tested the collectors according to the EN 12975 part 1+2 standards and by the SABS laboratory in South Africa according to the South African standards ,
Our collectors are certified in Europe by Cener and ITW and by ESKOM in South Africa for the rebate program.
