Resol - Model DeltaSol BS Series - Solar Controller

SHARE

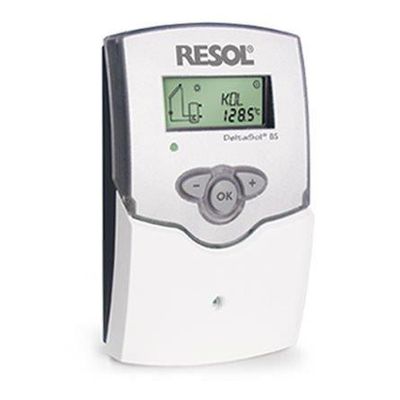

The RESOL controllers for standard solar thermal systems. The DeltaSol BS series provides a clear operating concept. The intuitive commissioning menu leads you through the initial configuration in only a few steps. The system selected is shown on the display, the status of the individual components is indicated by means of flashing codes. The DeltaSol BS series is available in 3 versions, depending on the demands. Details concerning the number of the relays as well as additional functions are shown in the technical data.

Most popular related searches
solar thermal system
solar controller
energy efficiency
solar thermal
solar heating control
semiconductor
solar heating
voltage data
heat pump
  • Drainback option
  • Heat quantity measurement
  • Function control
  • Commissioning menu
  • Unit °C and °F selectable
  • HE pump control via adapter

    DeltaSol® BS/4, BS Plus
  • 3 basic system layouts (DeltaSol® BS/4), 10 basic system layouts (DeltaSol® BS Plus) to choose from
  • Tube collector function, thermal disinfection function, time-controlled thermostat function
  • Inputs: 4 Pt1000 temperature sensors
  • Outputs:
  • 1 semiconductor relay (DeltaSol® BS/2)
  • 2 semiconductor relays (DeltaSol® BS/4, DeltaSol® BS Plus)
  • Switching capacity: 1 (1) A 100 ... 240 V~ (semiconductor relay)
  • Total switching capacity: 1 A 240 V~ (DeltaSol® BS/2), 2 A 240 V~ (DeltaSol® BS/4, DeltaSol® BS Plus)
  • Power supply: 100 – 240 V~ (50 – 60 Hz)
  • Supply connection: type Y attachment
  • Standby:
  • 0.45 W (DeltaSol® BS/2)
  • 0.74 W (DeltaSol® BS/4), 0.38 W (DeltaSol® BS Plus)
  • Temperature controls class: I (DeltaSol® BS/4, DeltaSol® BS Plus)
  • Energy efficiency contribution: 1 % (DeltaSol® BS/4, DeltaSol® BS Plus)
  • Mode of operation: type 1.C.Y action
  • Rated impulse voltage: 2.5 kV
  • Data interface: RESOL VBus®
  • VBus® current supply: 35 mA
  • Functions: differential temperature controller with adjustable system functions: function control according to BAFA guidelines, operating hours counter, tube collector function (DeltaSol® BS/4, DeltaSol® BS Plus), heat quantity measurement and pump speed control
  • Housing: plastic, PC-ABS and PMMA
  • Mounting: wall mounting, mounting into patch panels is possible
  • Indication/Display: System-Monitoring for visualisation of systems, 16-segment and 7-segment display, 8 symbols for indication of system status and operating control lamp
  • Operation: 3 pushbuttons at the front
  • Ingress protection: IP 20 / IEC 60529
  • Protection class: II
  • Ambient temperature: 0 ... 40 °C
  • Pollution degree: 2
  • Dimensions: 172 x 110 x 49 mm
  • Maximum altitude: 2000 m above MSL
  • Fuse: T4A
