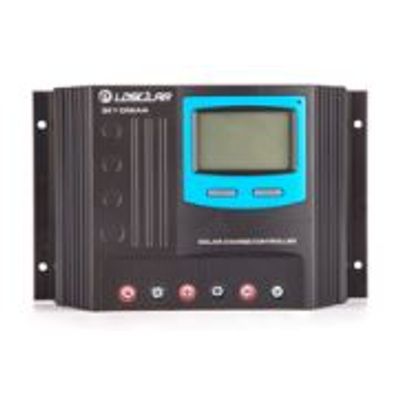

LDSOLAR - Model Sky Dream Series - SD2460S 60A PWM - Solar Controller
Sky Dream Series（SD in short） is our newly designed PWM solar controller.It specialty lies in the inner 32 bits CPU, which enables the controller to work faster and more stable. Besides, our unique black & Red big terminal design facilitate your connection in real application. It can be applied in the solar system which has higher standard over the stability and reliability.
Most popular related searches
MPPT solar charge controller
solar controller
solar charge control
solar charge controller
battery protection
MPPT charge controller
solar charge
charge controller
battery discharge
GEL battery
- 32 bits CPU, sampling precision is higher, operation speed is faster.
- 12V/24V DC Automatic identify system voltage.
- 3 stage PWM charging mode: Bulk,Boost, Float.
- LCD displaying and double button operation of man-machine interface.
- Sealed,Gel,Flooded battery selection procedure.
- Load control mode:Sensor mode,Time mode
- Operation log function:account charging and discharging ampere hour of the system the working days,times of HVD, times of LVD and times of over current protection.
- Accurate temperature compensation, it can automatically accommodate the charging voltage according to the environmental temperature, optimizing for long battery life.
- Patented large-diameter with 25mm2, red and black connector distinguish positive and negative pole avoiding wrong operation.
- 5V 1A USB port,CVCC output.
- PV reverse polarity protection
- PV short circuit protection
- Thunder protection
- Battery overcharge protection
- Battery over discharge protection
- Battery reverse polarity protection
- Load overload protection
- Load short circuit protection
- Over Temperature Protection
- FOB Price: US $0.5 - 9,999 / Piece
- Min.Order Quantity: 100 Piece/Pieces
- Supply Ability: 10000 Piece/Pieces per Month
- Port: Shenzhen
- Payment Terms: L/C,D/A,D/P,T/T
